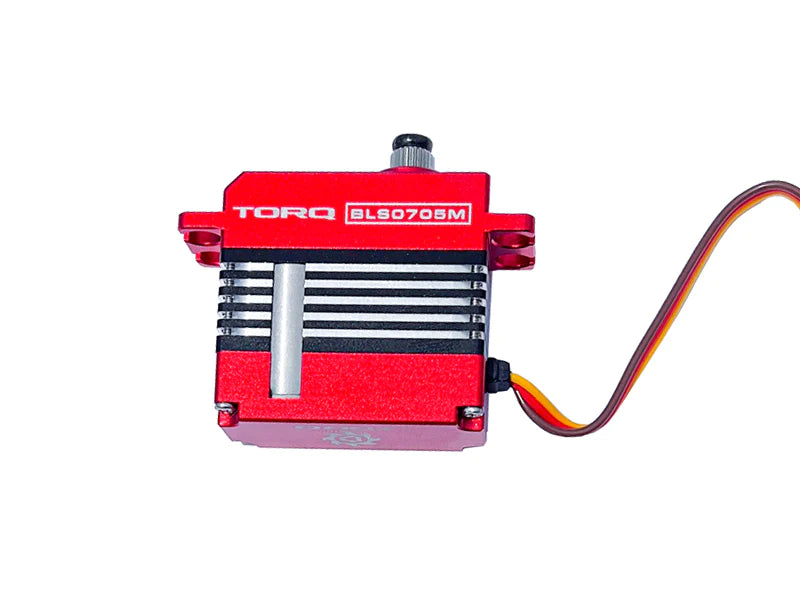

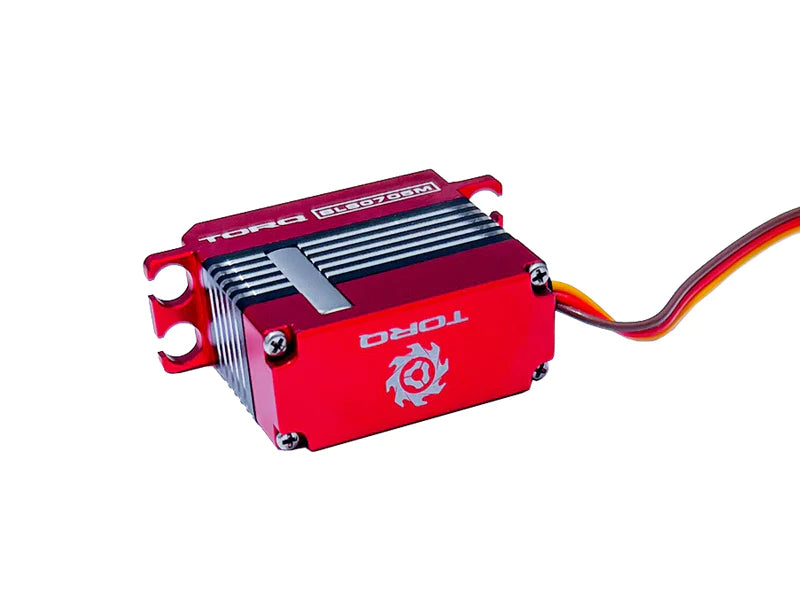

TORQ BLS0705M Mini HV Brushless Cyclic/Rudder Servo

  • Sale
  • Regular price $95.00


This servo is basically a Mini Rudder Servo that can handle up to 700-800 Heli size, but if you have FBL that can use with 760us cyclic servo, you can also use this servo as cyclic servo for 550-600 size.

  • Brushless Motor Technology for the Ultimate Power & Control
  • - Incredible Levels of Speed & Performance
  • - Ultra Precise, High Resolution Control
  • - Fully Replaceable Steel Gear Train for Maximum Strength
  • - Excellent Thermal Dissipation via Finned 6061 Aluminum Case
  • - 8.4V High Voltage Ready
  • - Optimized for Heli
  • - Dual Ball Bearing Construction
  • 0.05 sec / 60° @ 8.4V
  • 0.06 sec / 60° @ 7.4V
  • 0.07 sec / 60° @ 6.0V
  • 15Kg.cm / 208.31 oz in. @ 8.4V
  • 13Kg.cm / 180.53 oz in. @ 7.4V
  • 10Kg.cm / 138.87 oz. in. @ 6.0V
  • Motor Type: Brushless
  • Servo Arm Type: Futaba
  • Working Frequency: 760us / 560Hz
  • Weight: 45g
  • Dimensions: 35.5mm x 15mm x 35.5mm (LxWxH)
  • Voltage Range: 6.0V - 8.4V
