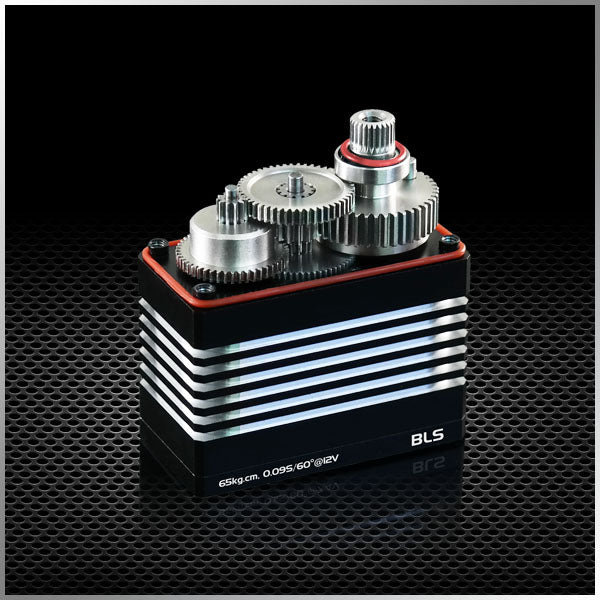

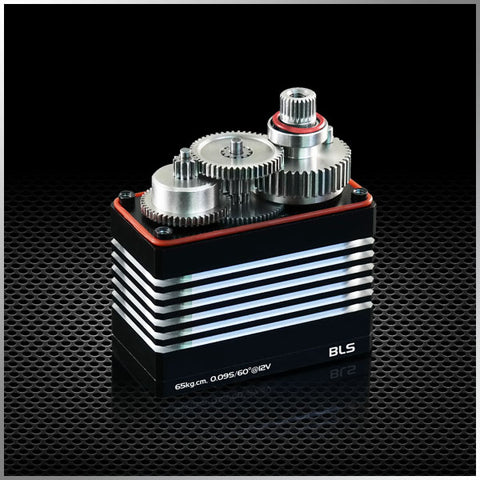

S65S12--91g 65kg.cm,digital,steel gear standard servos

  • Sale
  • Regular price $95.00


SPECIAL ORDER

SUBJECT TO AVIALABILTY



S65S12--91g 65kg.cm,digital,steel gear standard servos
Item: S65S12
Gear: Steel gear
Spline: 25T
Motor: Brushless motor
Bearing: 2BB
Dead band: 2μs default
Waterproof: Yes
Operating Voltage: DC7.4~12.0V
Rated working voltage: DC12V
Working frequency: 1520μs/330hz
Working angle: ±63°@800us-2200us
Working temperature: -10℃~+50℃
Storage temperature: -20℃~+60℃

-- High performance, digital standard servo

-- High-precision steel gears

-- Full CNC aluminum hulls and structure

-- High quality brushless motor

-- Dual ball bearings

-- Super long life

-- Waterproof

Speed(7.4V):0.15sec/60degrees

Speed(8.4V):0.13sec/60degrees

Speed(12.0V):0.09sec/60degrees

Stall torque(12.0V):65kg.cm(902.85oz/in)

Maximum working torque(12V):50kg.cm(694.50oz/in)

Rated torque(7.4V):27.0kg.cm(361.14oz/in)

Rated torque(8.4V):29.0kg.cm(444.48oz/in)

Rated torque(12.0V):33.0kg.cm(486.15oz/in

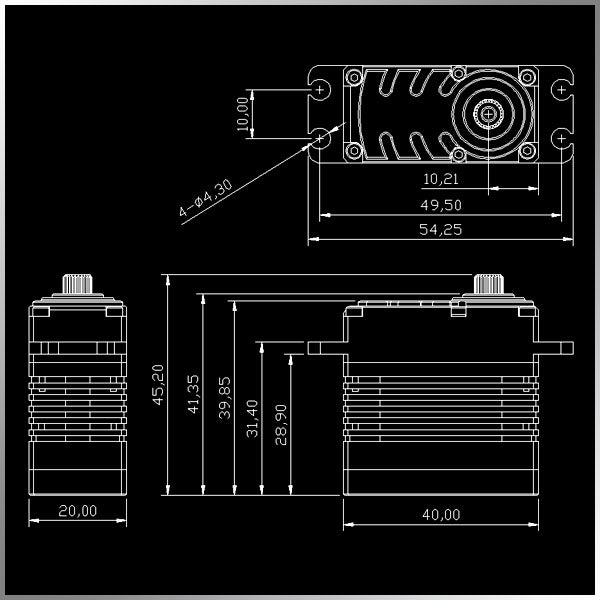

Dimensions:40*20*39.8mm/1.56X0.78X1.55in

Weight:91g(3.21oz)

Connector Wire Length:JR300mm(11.7in)
