S65S--89g 65kg.cm,digital,steel gear standard servos

  • Sale
  • Regular price $95.00


SPECIAL ORDER

SUBJECT TO AVIALABILTY

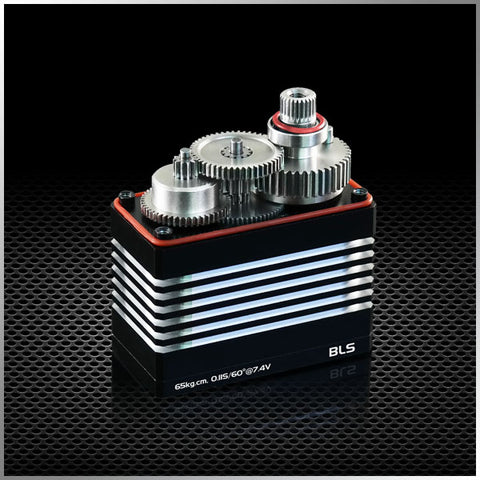

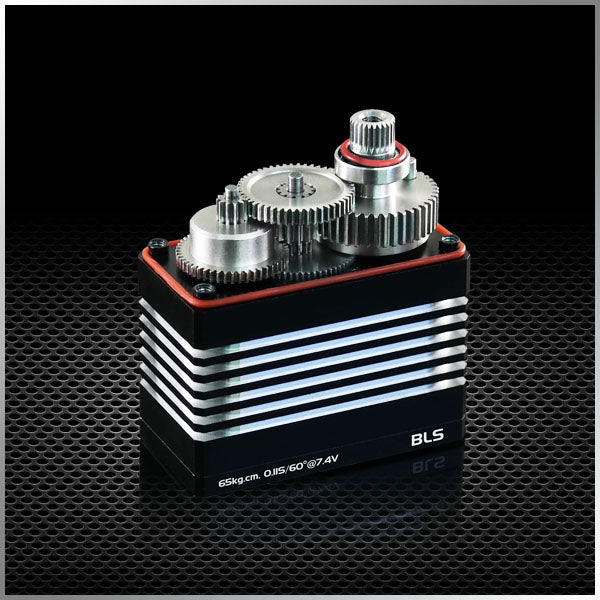

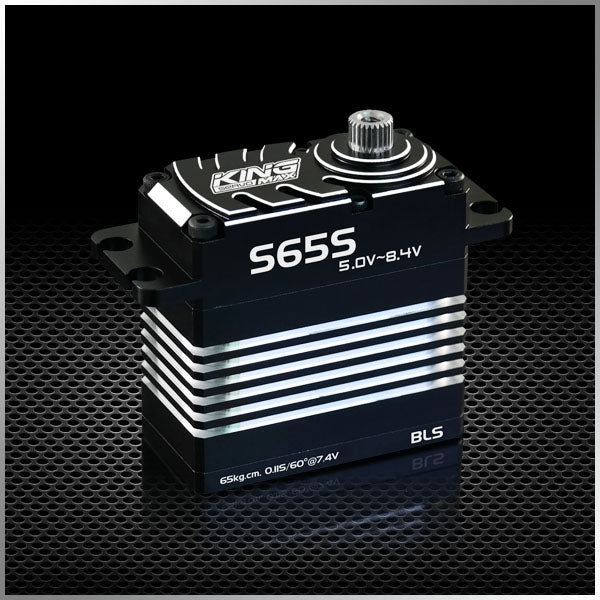

S65S--89g 65kg.cm,digital,steel gear standard servos
Item: S65S
Gear: Steel gear
Spline: 25T
Motor: Brushless motor
Bearing: 2BB
Dead band: 2μs default
Waterproof: Yes
Operating Voltage: DC5.0~8.4V
Rated working voltage: DC 7.4V
Working frequency: 1520μs/330hz
Working angle: ±63°@800us-2200us
Working temperature: -10℃~+50℃
Storage temperature: -20℃~+60℃

-- High performance, digital standard servo

-- High-precision steel gears

-- Full CNC aluminum hulls and structure

-- High quality brushless motor

-- Dual ball bearings

-- Super long life

-- Waterproof

Speed(5.0V):0.16sec/60degrees

Speed(6.0V):0.14sec/60degrees

Speed(7.4V):0.11sec/60degrees

Speed(8.4V):0.10sec/60degrees

Stall torque(7.4V):65kg.cm(902.85oz/in)

Maximum working torque(7.4V):43kg.cm(597.27oz/in)

Rated torque(5.0V):22.0kg.cm(305.58oz/in)

Rated torque(6.0V):26.0kg.cm(361.14oz/in)

Rated torque(7.4V):32.0kg.cm(444.48oz/in)

Rated torque(8.4V):35.0kg.cm(486.15oz/in

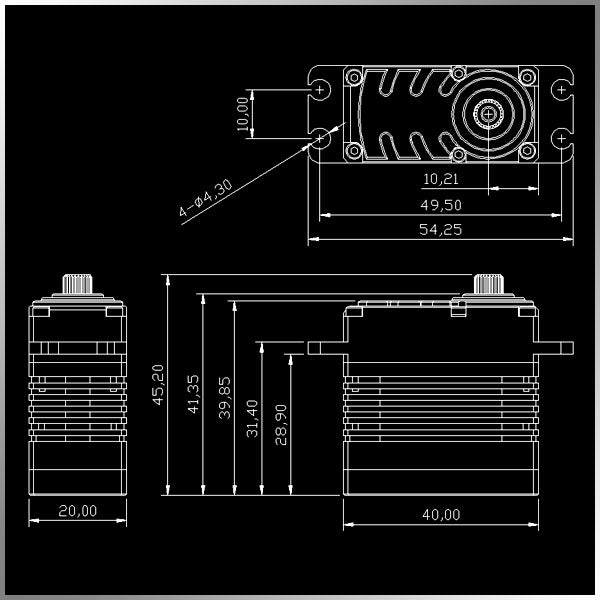

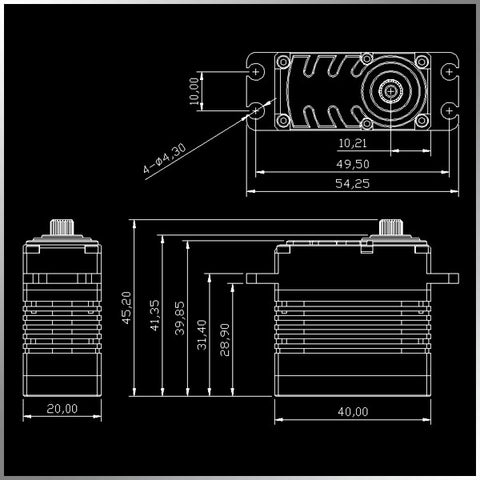

Dimensions(L*W*H):40*20*39.8mm/1.56X0.78X1.55in

Weight:89g(3.13oz)

Connector Wire Length:JR300mm(11.7in)
