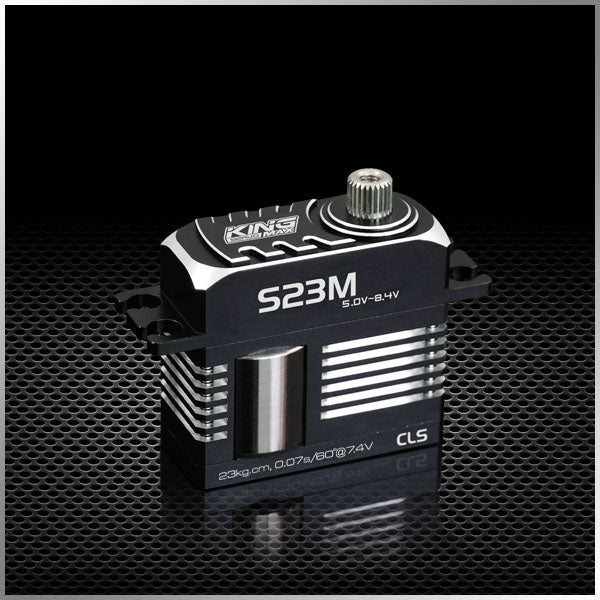

S23M-50g 23kg.cm,digital,steel gears mini servos

  • Sale
  • Regular price $73.00

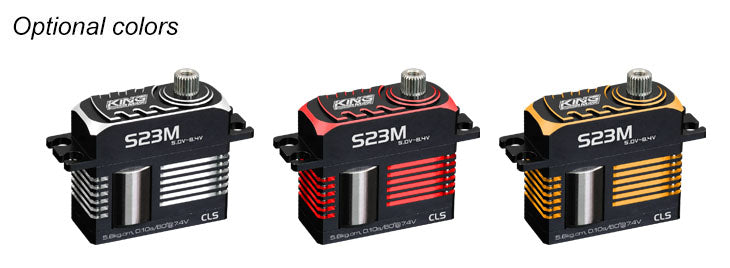

5 Black In Stock

0 Red In Stock

0 Gold In Stock

S23M-50g 23kg.cm,digital,steel gears mini servos
Item: S23M

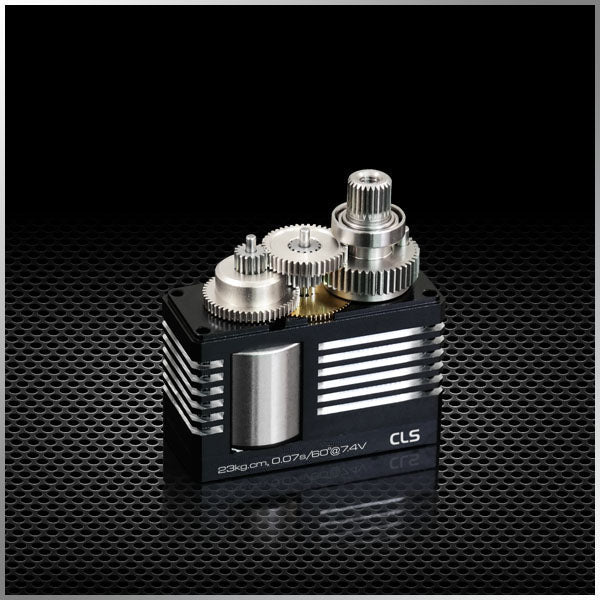

Gear: Steel gear
Spline: 25T
Motor: Coreless motor
Bearing: 2BB
Dead band: 2μs default
Waterproof: No
Operating Voltage: DC5.0~8.4V
Rated working voltage: DC 7.4V
Working frequence: 1520μs/330hz
Working angle: ±63°@800us-2200us
Working temperature: -10℃~+50℃
Storage temperature: -20℃~+60℃

-- High performance digital mini servo

-- High-precision steel gear

-- High quality coreless motor

-- Full CNC aluminium hulls and structure

-- Dual ball bearings

-- Super long life

Operating Speed(5.0V):0.10sec/60degrees

Operating Speed(6.0V):0.08sec/60degrees

Operating Speed(7.4V):0.07sec/60degrees

Operating Speed(8.4V):0.06sec/60degrees

Stall torque(7.4V):23.0kg.cm(319.47oz/in)

Maximum working torque(7.4V):10.4kg.cm(144.45oz/in)

Rated working torque(5.0V):4.60kg.cm(63.89oz/in)

Rated working torque(6.0V):4.90kg.cm(68.06oz/in)

Rated working torque(7.4V):6.00kg.cm(83.34oz/in)

Rated working torque(8.4V):7.00kg.cm(97.23oz/in)

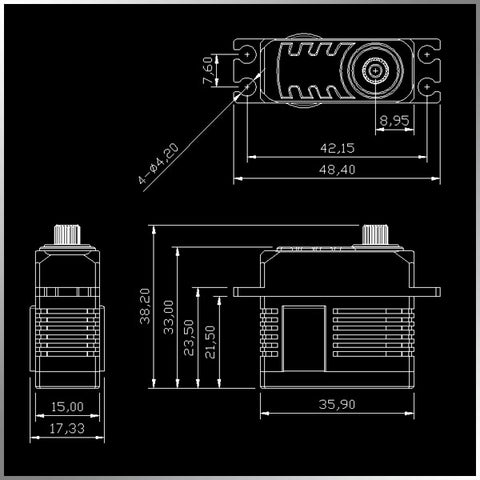

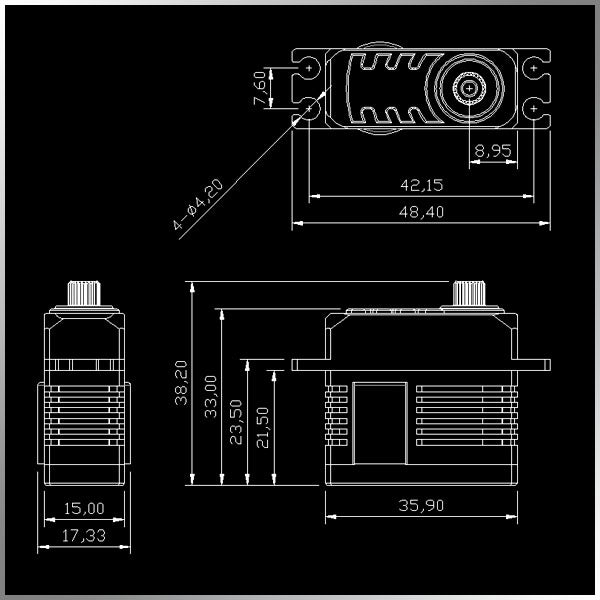

Dimensions(L*W*H):36*15*33mm/1.40X0.58X1.28in

Weight:50.5g(1.78oz)

Connector Wire Length:JR220mm(8.58in)
