Q8AC
Powerful Quad Output Charger | 2000W | 20A×4 | 2.8″ IPS 320×240px
For 1~8S LiPo LiHV Battery, Charge, Storage, Discharge
• Powerful quad output, up to power 2000w, Xt90 quad output 20a×4.

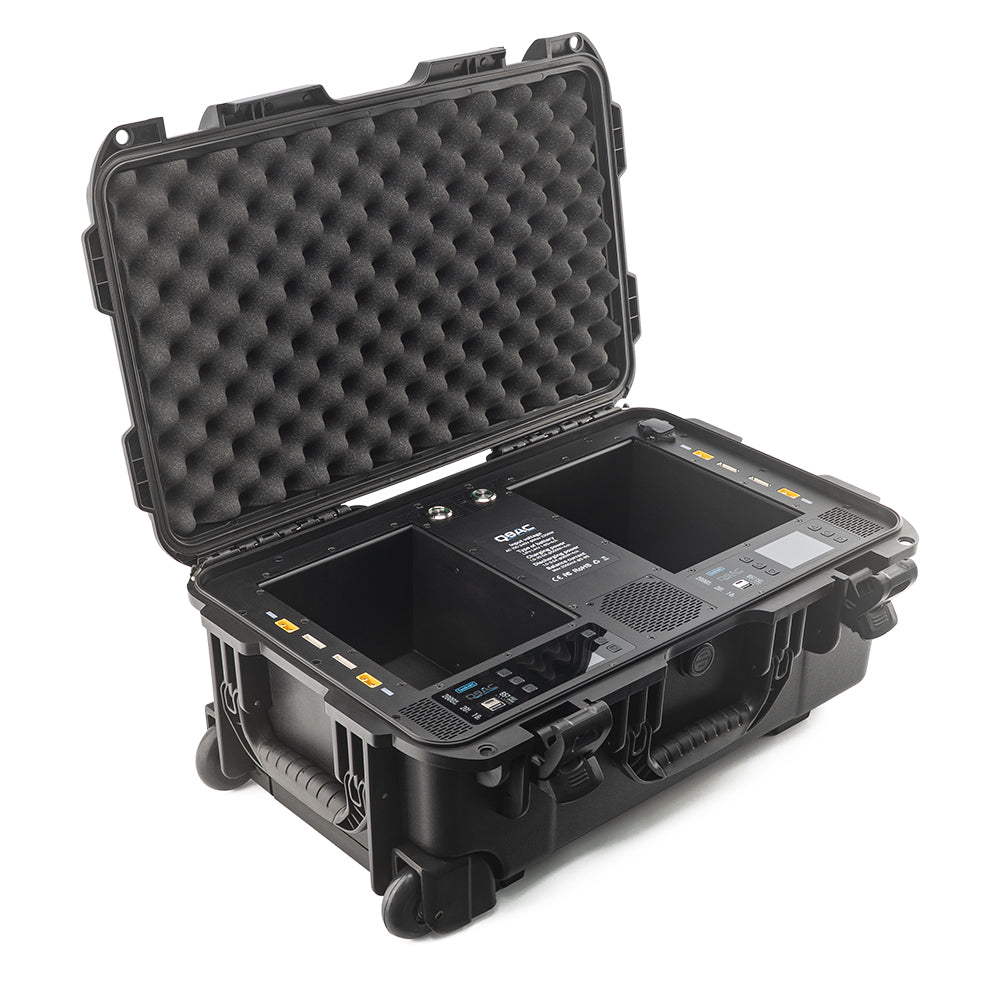

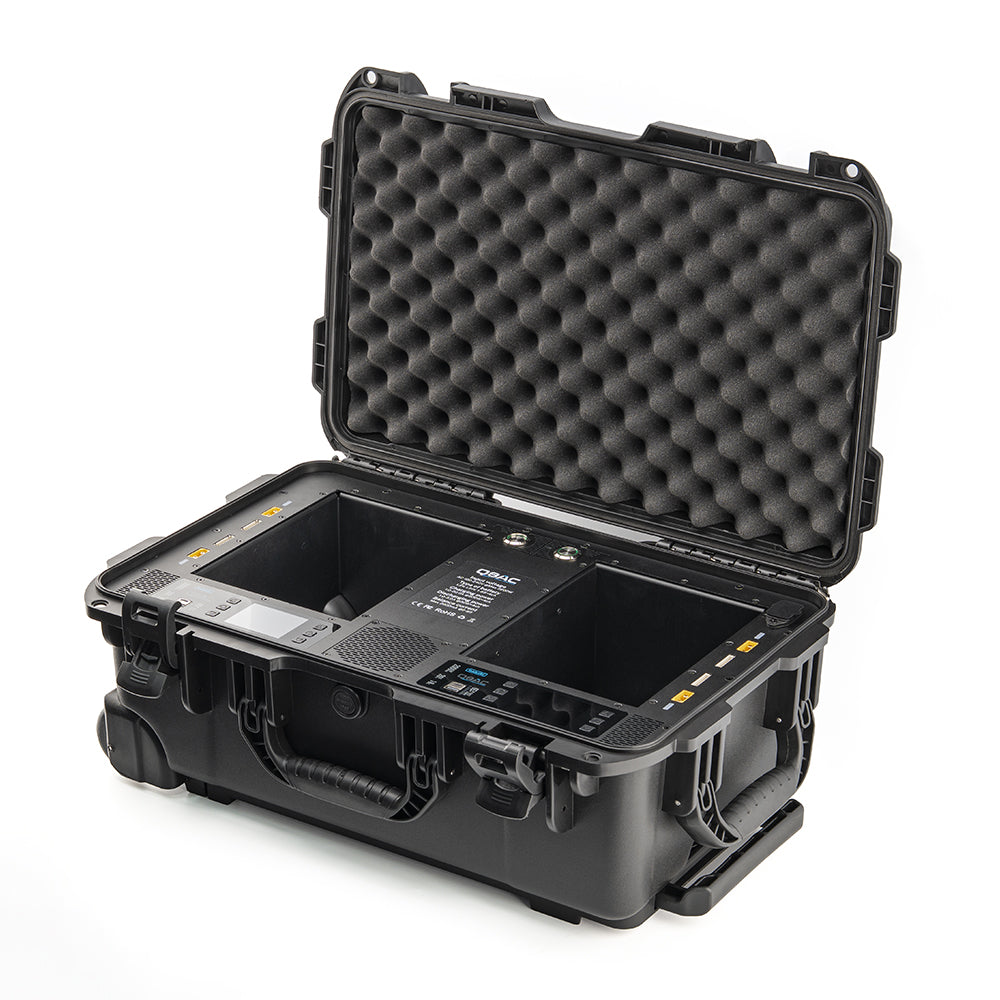

• Oversized battery storage, Holds up to four 8S high-capacity batteries.

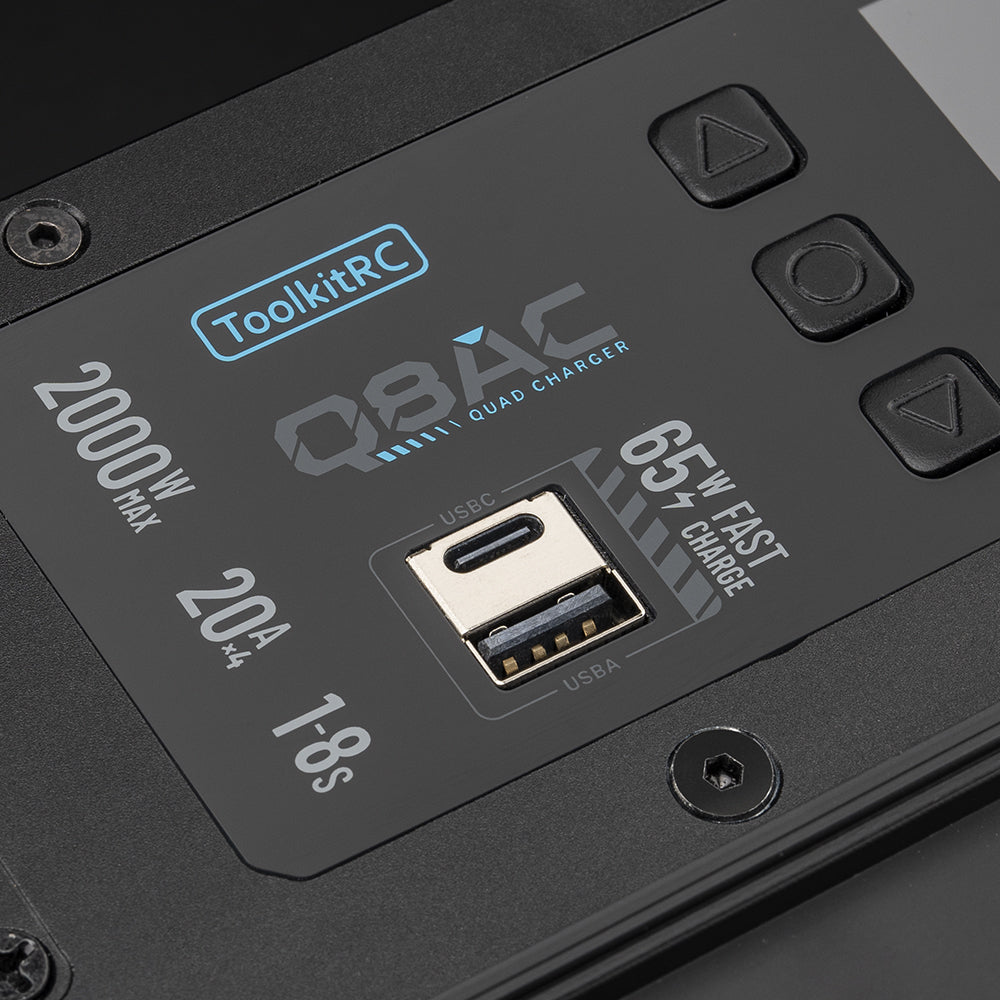

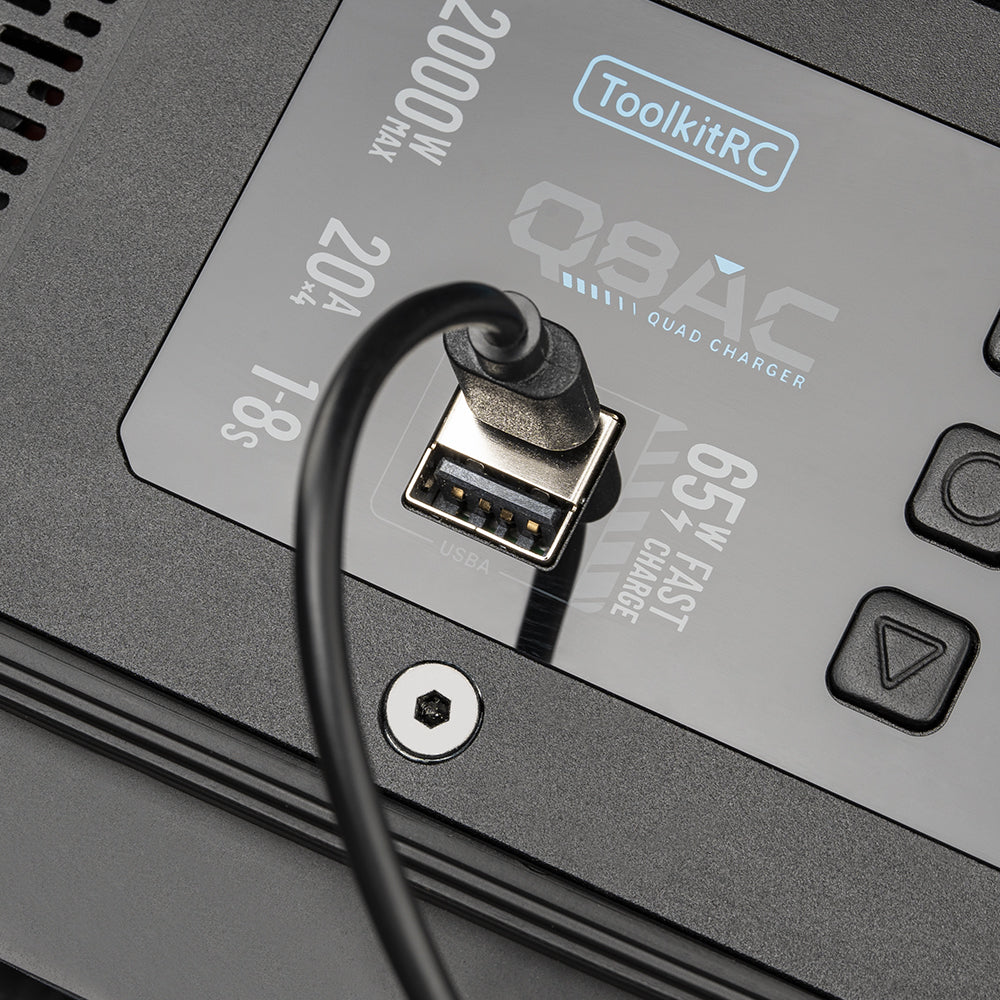

• Dual USB-A/USB-C output, Max 65W fast charge.

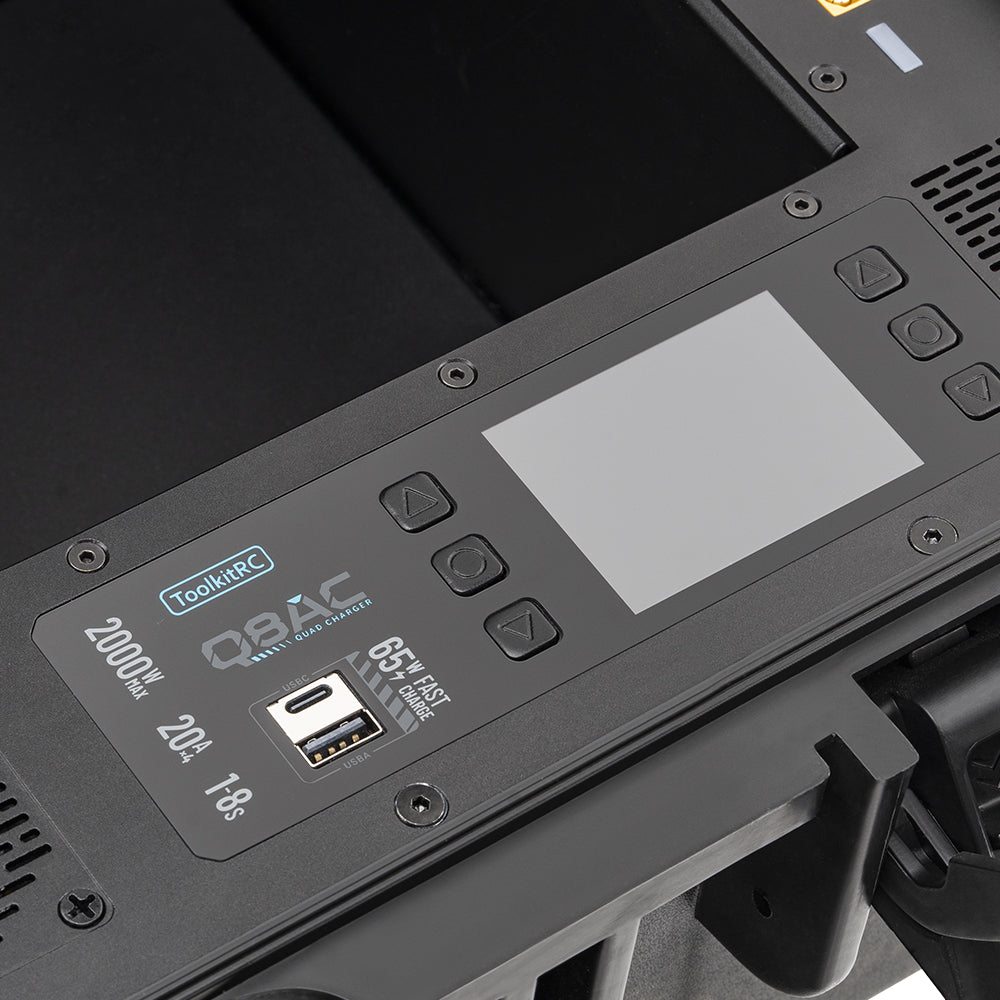

• Smart 2.8” IPS LCD display, UI simple yet comprehensive.

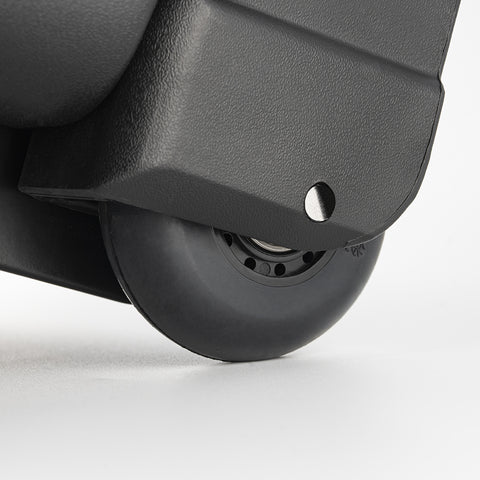

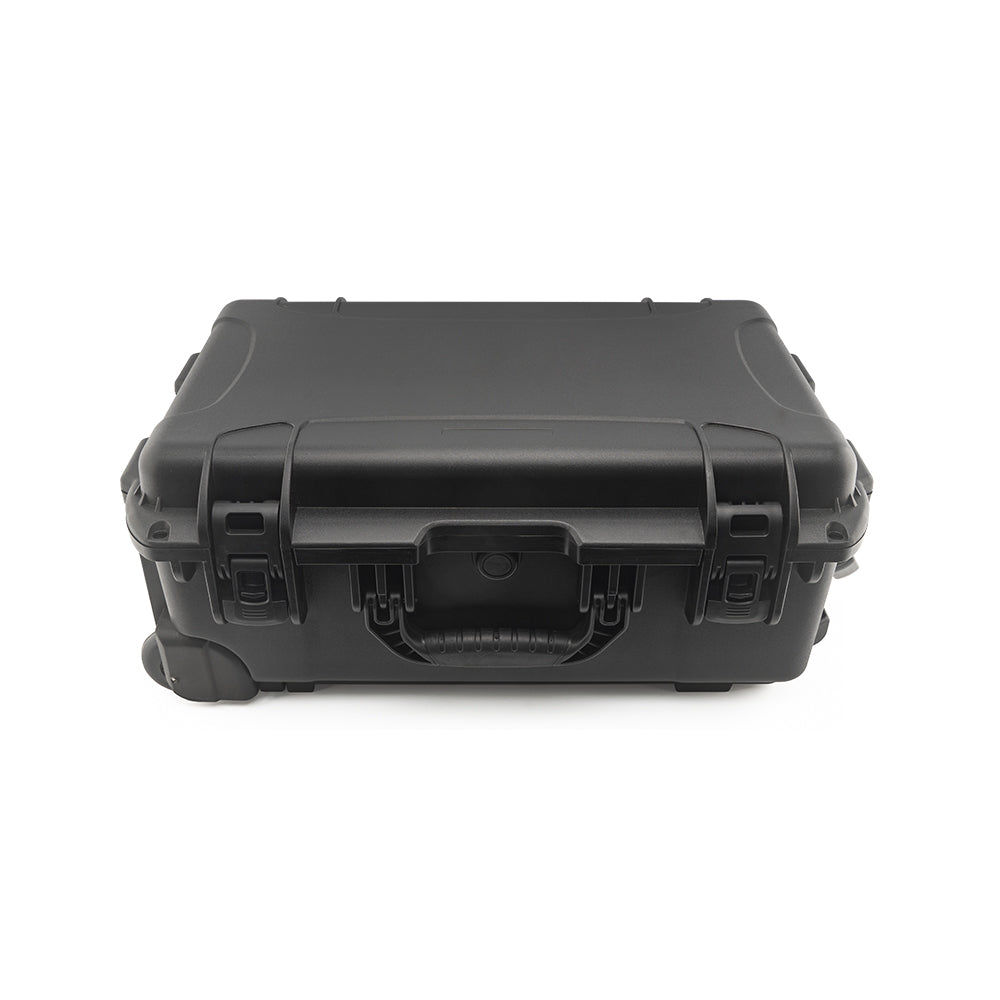

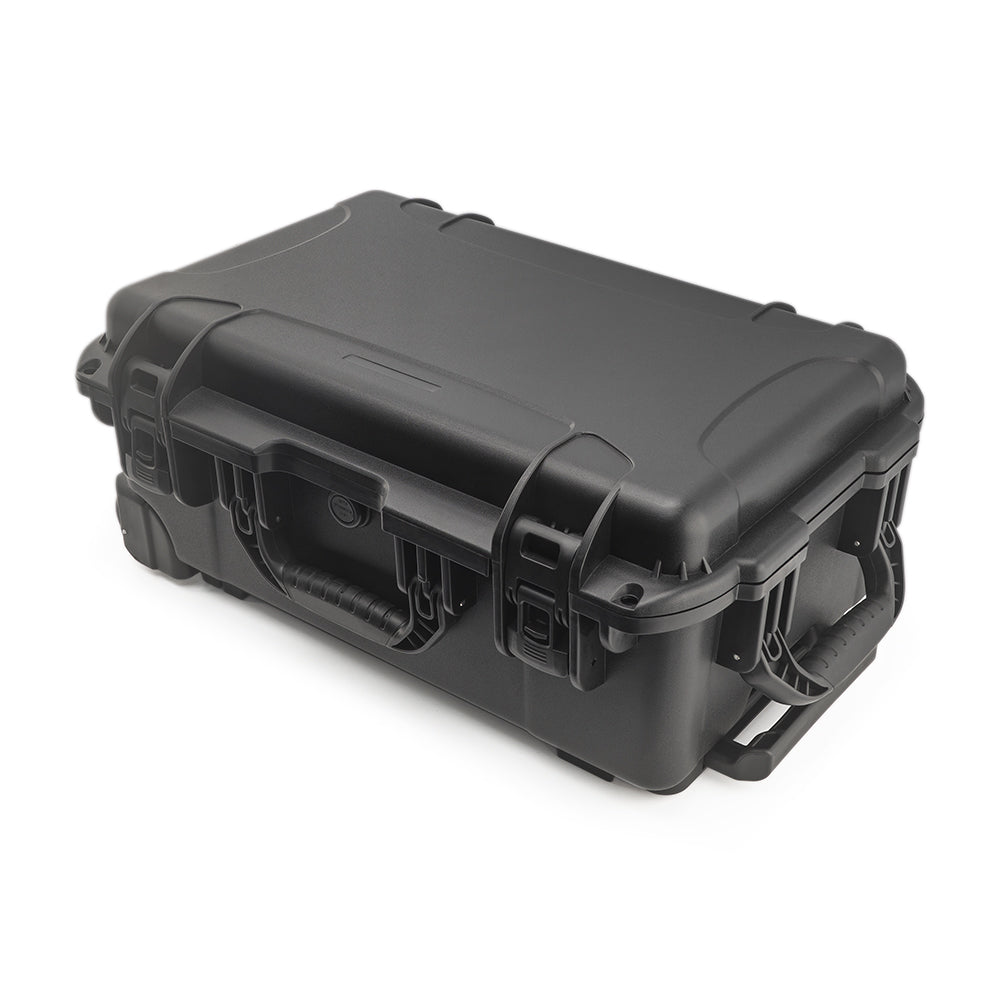

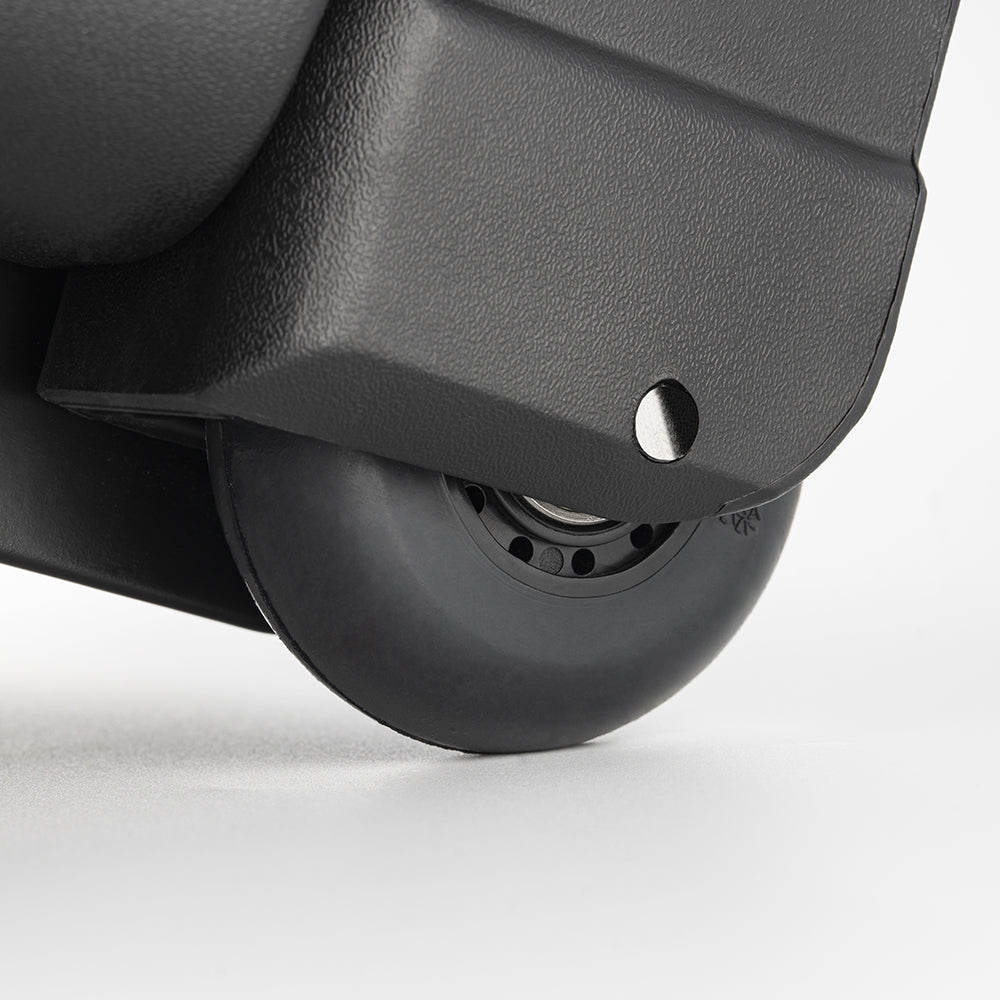

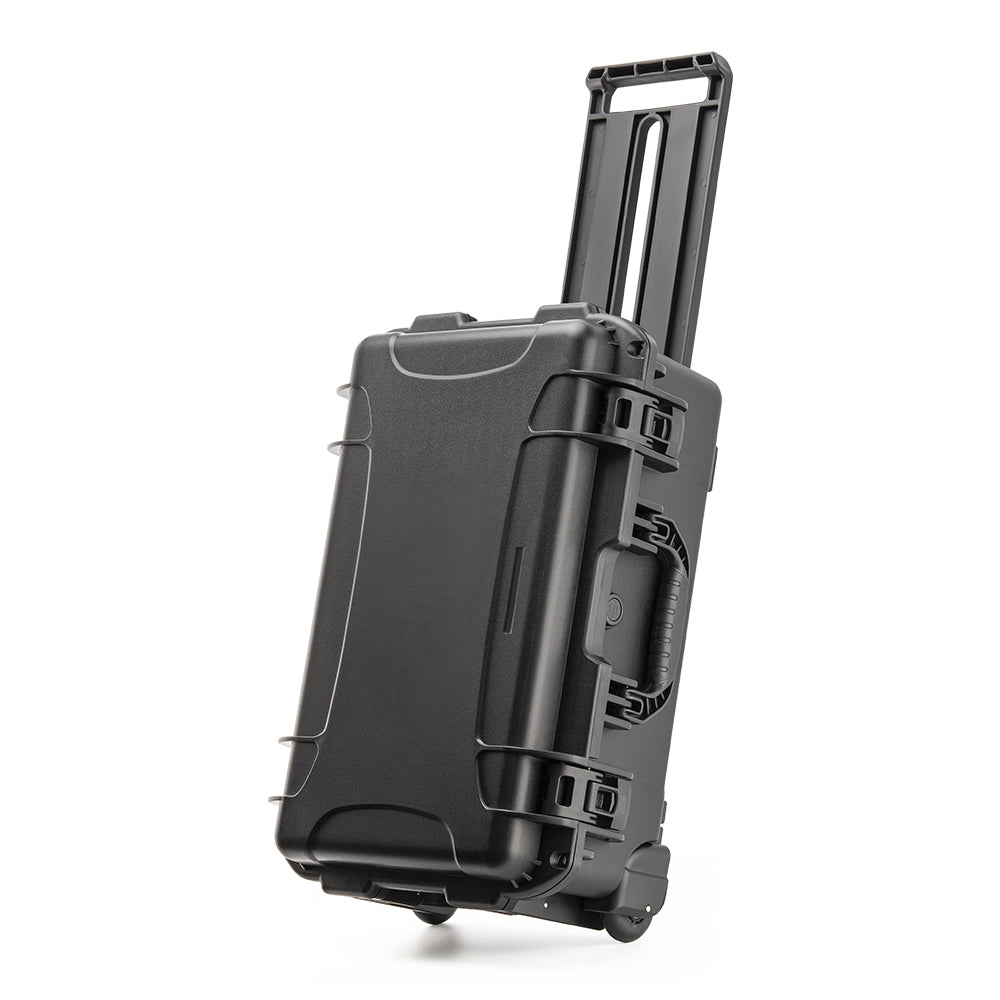

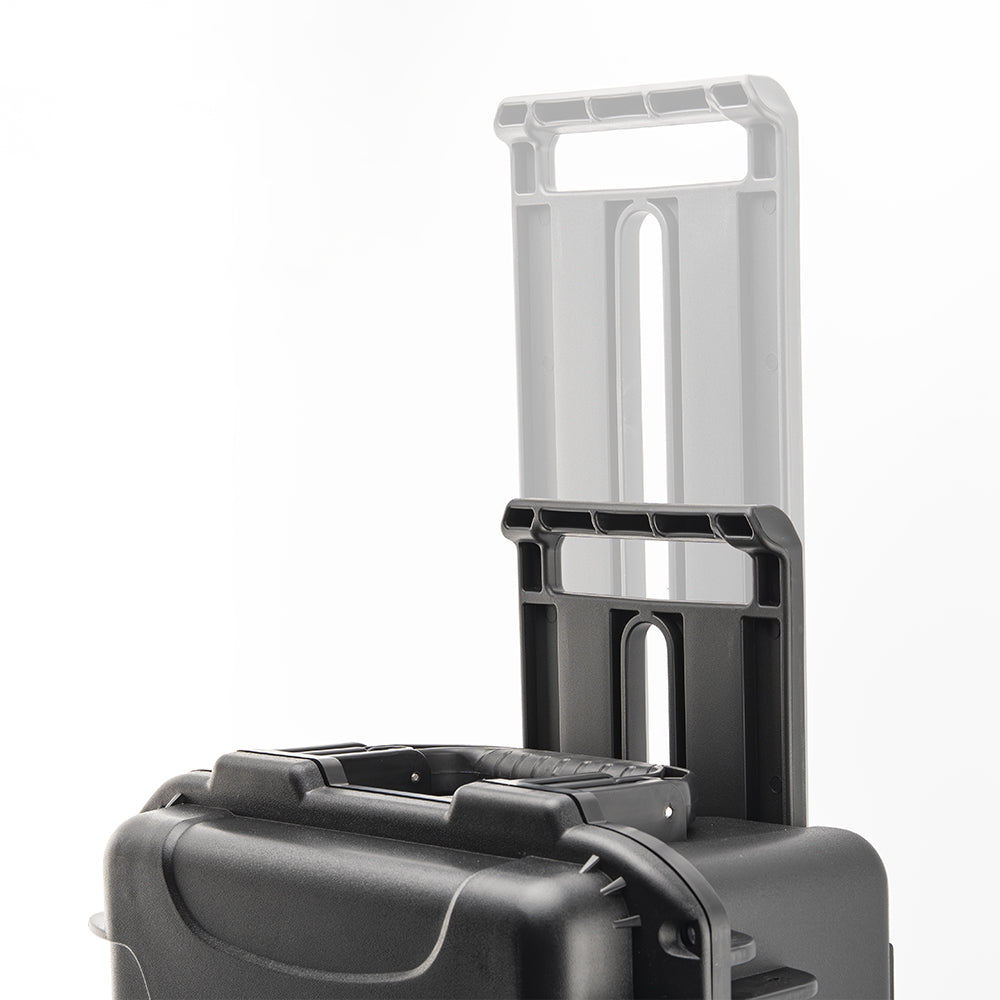

• Suitcase design more portable.

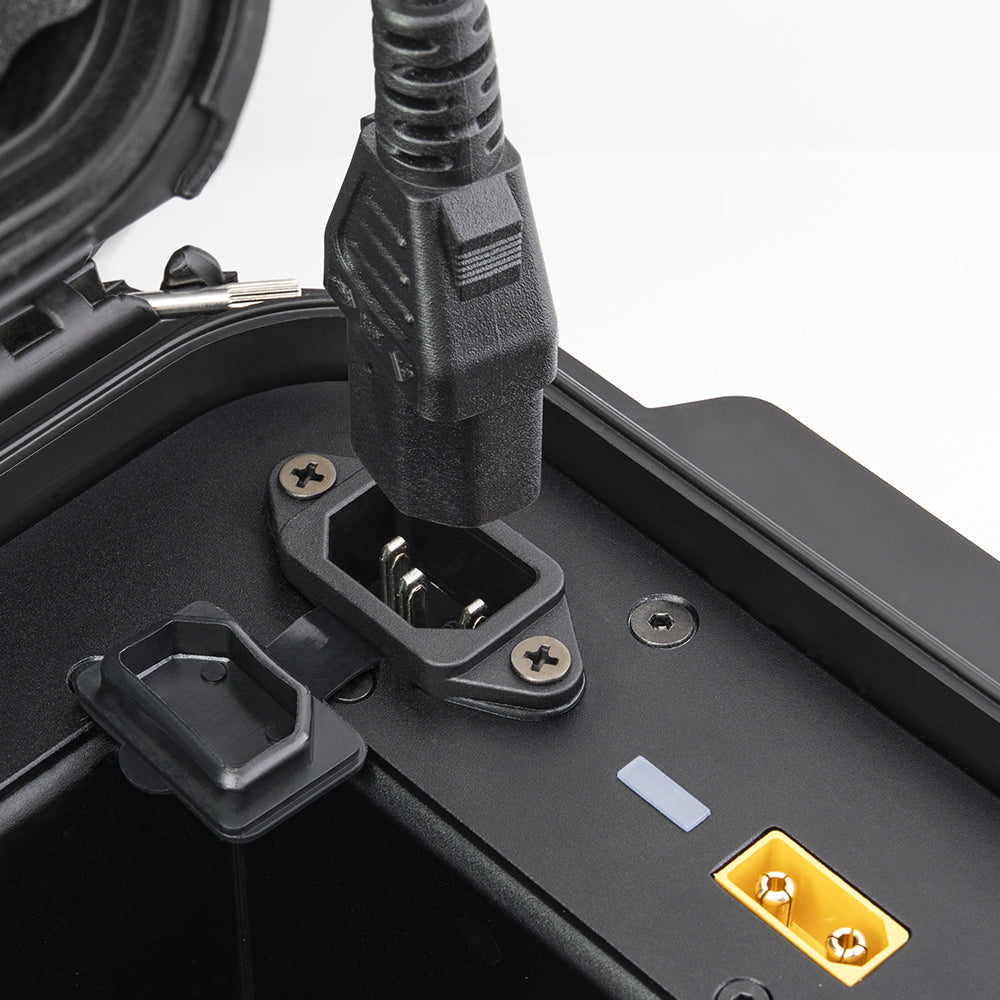

• 100-240V wide voltage input, Adaptable to global voltage standards.
Video
GENERAL

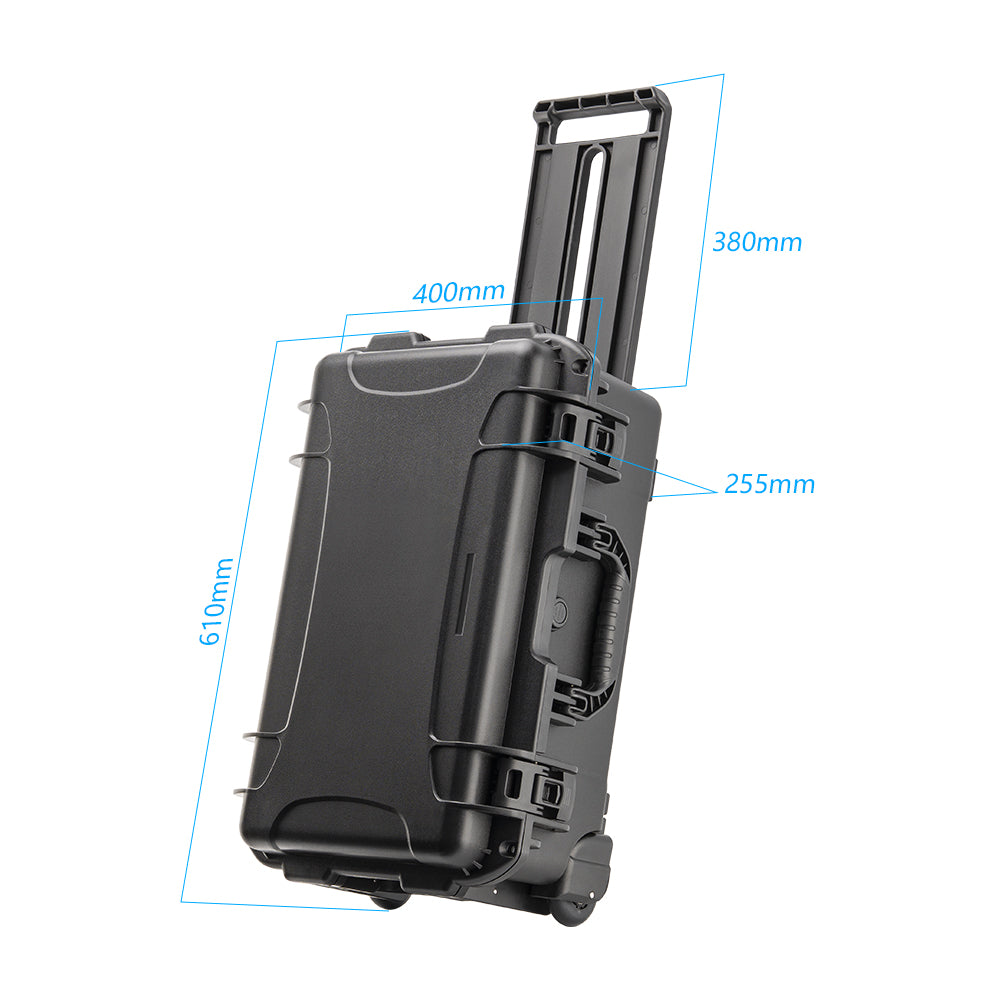

| Product size |
610×400×255mm |
| Product weight |
13Kg |
| Packing size |
430×280×645mm |
| Packaging weight |
15Kg |
| LCD |
2.8″ IPS 320×240px |
CHARGER
| Input voltage |
AC 100-240V@MAX 2200W |
| Battery type |
LiPo LiHV@1-8S×4ch |
| Charging power |
1.0-20.0A@500W×4ch |
| 1.0-40.0A@1000W /SYNC Mode |
| Discharging power |
1.0-3.0A@30W×4ch |
| Balance current |
MAX2000mA@1-8S |
|
Fast charging (USB-A/USB-C) |
5.0-20.0V @Max65W |
| Firmware Update(only USB-C) |
| PD(only USB-C) QC PPS AFC FCP SCP PE SFCP |
| Internal resistance |
1mΩ-9.9Ω@1-8S |
| Operating |
4 sets of buttons |
| Output connector |
4×XT90 male port |
| 2× USB-A |
| 2× Type C |
