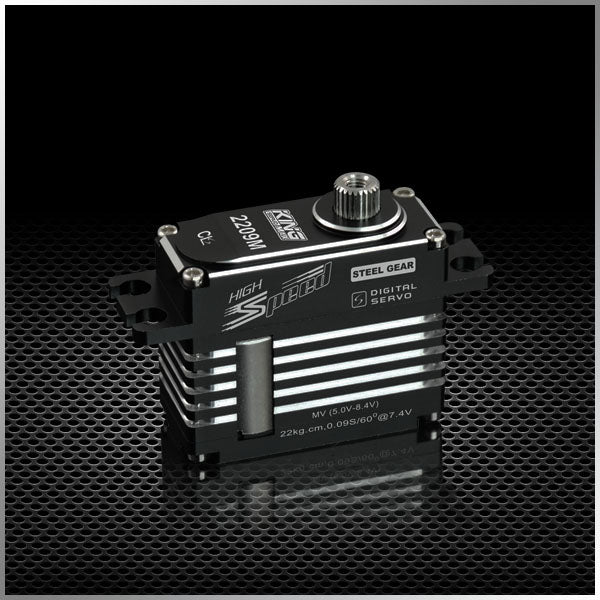

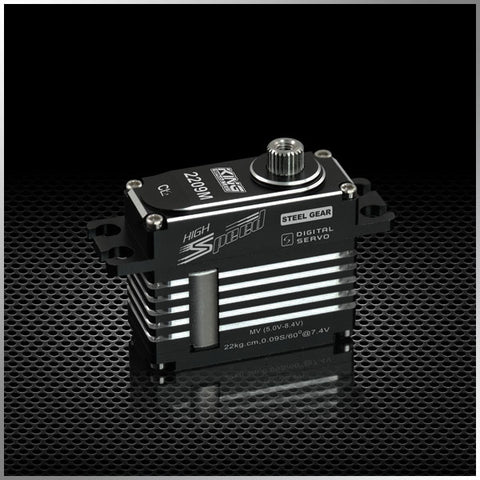

CLS2209M--43g 22kg.cm,digital,steel gears mini servos

(CLS2209M) 0 In Stock

SPECIAL ORDER

SUBJECT TO AVIALABILTY

Item：CLS2209M

Gear：Steel gear

Spline：Standard 25T

Motor：Coreless motor

Bearing：2BB

Dead band：2μs default

Waterproof：No

Operating Voltage：DC5.0~8.4V

Rated working voltage：DC 7.4V

Working frequency：1520μs/330hz

Working angle：±63°@800us-2200us

Working temperature：-10℃~+50℃

Storage temperature：-20℃~+60℃

• -- High performance digital mini servo

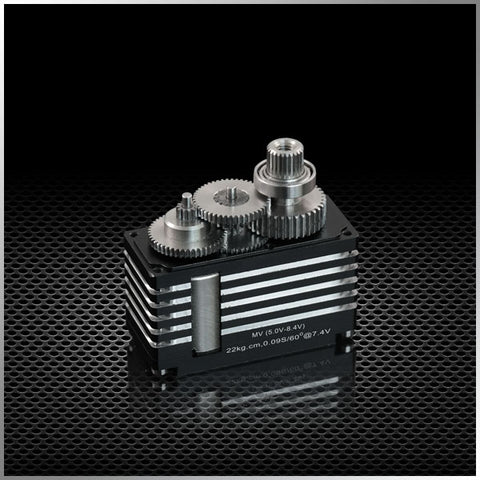

• -- High-precision steel gear
• -- High quality coreless motor
• -- Full CNC aluminium hulls and structure
• -- Dual ball bearings
• -- Super long life

• Operating Speed(5.0V):0.14sec/60degrees
• Operating Speed(6.0V):0.11sec/60degrees
• Operating Speed(7.4V):0.09sec/60degrees
• Operating Speed(8.4V):0.08sec/60degrees
• Stall Torque(7.4V):22kg.cm(305.58oz/in)
• Maximum working torque(7.4V):12.0kg.cm(166.68oz/in)
• Rated working torque(5.0V):5.00kg.cm(69.45oz/in)
• Rated working torque(6.0V):6.00kg.cm(83.34oz/in)
• Rated working torque(7.4V):7.00kg.cm(97.23oz/in)
• Rated working torque(8.4V):7.50kg.cm(104.17oz/in)

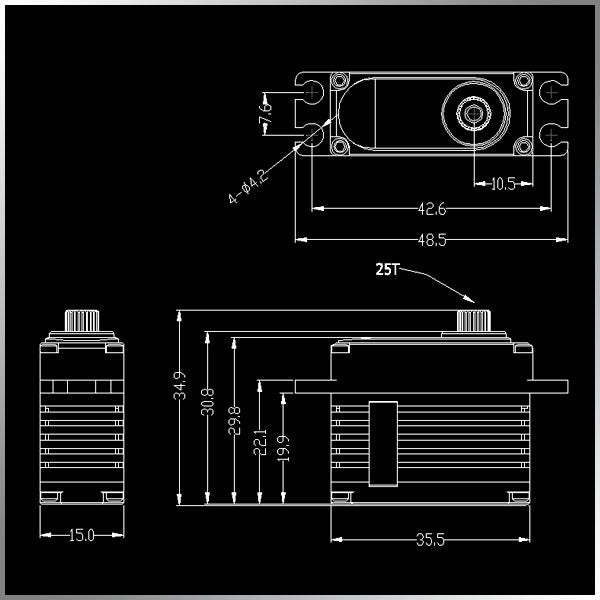

• Dimensions:35.5*15*29.7mm/1.38*0.58*1.15in
• Weight:43g(1.51oz)
• Connector Wire Length:JR250mm(9.75n)
