CLS2035HHV--20g 5.5kg.cm,digital,metal gears mini servos

  • Sale
  • Regular price $39.00


(CLS2035HHV) 0 In Stock

SPECIAL ORDER

SUBJECT TO AVIALABILTY



 Item:CLS2035HHV

Gear:Full metal

Spline:Exclusive

Motor:Coreless motor

Bearing:2BB

Dead band:2μs default

Waterproof:Yes

Operating Voltage:DC5.0~8.4V

Rated working voltage:DC 7.4V

Working frequency:1520μs/330hz

Working angle:±63°@800us-2200us

Working temperature:-10℃~+50℃

Storage temperature:-20℃~+60℃

  • Programmable high performance mini digital servo
  • -- High-precision aluminium gears
  • -- High quality coreless motor
  • -- Full CNC aluminium case
  • -- Dual bearings
  • -- Ideal for 450 class helicopter swashplate
  • Operating Speed (5.0V): 0.07sec/60 degrees
  • Operating Speed (6.0V): 0.06sec/60 degrees
  • Operating Speed (7.4V): 0.05sec/60 degrees
  • Operating Speed (8.4V): 0.04sec/60 degrees
  • Stall Torque (5.0V): 3.8 kg.cm (52.78oz/in)
  • Stall Torque (6.0V): 4.6 kg.cm (63.89oz/in)
  • Stall Torque (7.4V): 5.5 kg.cm (76.40oz/in)
  • Stall Torque (8.4V): 6.2 kg.cm (86.12oz/in)

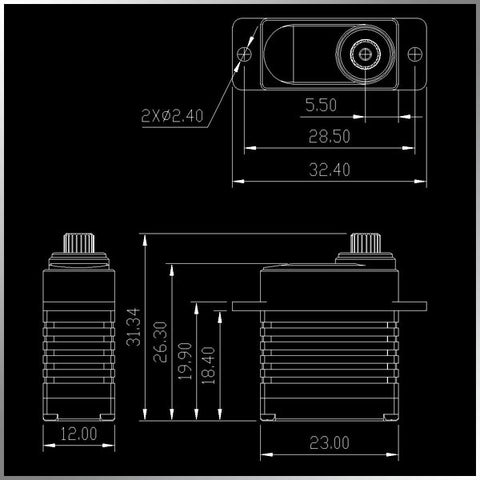

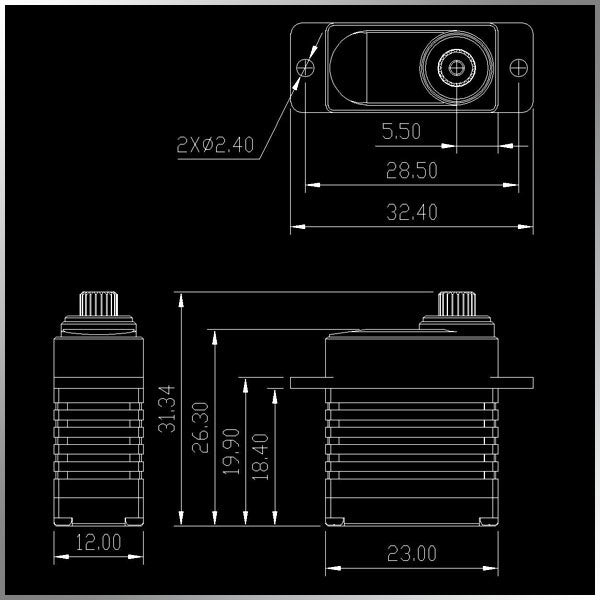

  • Dimensions: 23x12x28.5mm /0.9X0.47X1.11 in
  • Weight: 20 g (0.71oz)
  • Connector Wire Length: JR185 mm (7.28in)
