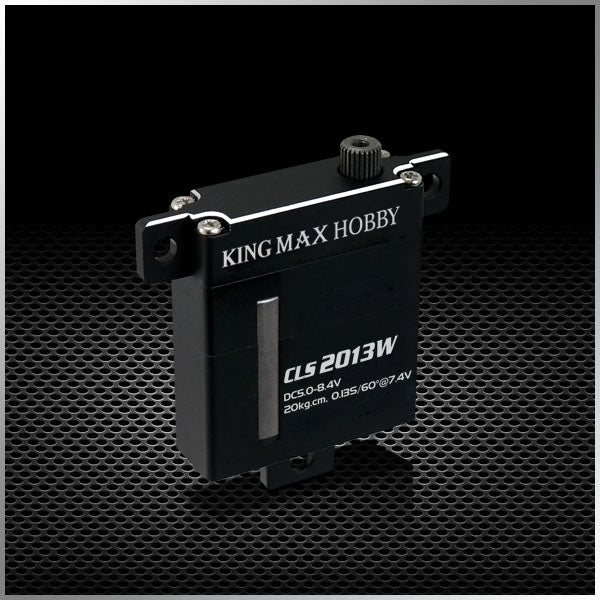

CLS2013W--28g 20kg.cm,digital,steel gears wing servo
CLS2013W--28g 20kg.cm,digital,steel gears wing servo
CLS2013W--28g 20kg.cm,digital,steel gears wing servo
CLS2013W--28g 20kg.cm,digital,steel gears wing servo
CLS2013W--28g 20kg.cm,digital,steel gears wing servo
CLS2013W--28g 20kg.cm,digital,steel gears wing servo
CLS2013W--28g 20kg.cm,digital,steel gears wing servo
CLS2013W--28g 20kg.cm,digital,steel gears wing servo

CLS2013W--28g 20kg.cm,digital,steel gears wing servo

  • Sale
  • $44.00
Description

(CLS2013W) 0 In Stock

SPECIAL ORDER

SUBJECT TO AVIALABILTY



Item： CLS2013W
Gear： Steel gear
Spline： Mini 25T
Motor： Coreless motor
Bearing： 2BB
Dead band： 2μs default
Waterproof： No
Operating Voltage： DC5.0~8.4V
Rated working voltage： DC 7.4V
Working frequency： 1520μs/330hz
Working angle： ±63°@800us-2200us
Working temperature： -10℃~+50℃
Storage temperature： -20℃~+60℃
Features

  • High performance, digital high voltage wing servo

  • Full CNC aluminum hulls and structure
  • High quality coreless motor
  • High-precision steel gear
  • Dual ball bearings
  • Super long life
    Specs

    • Operating Speed(5.0V):0.19sec/60degrees

    • Operating Speed(6.0V):0.16sec/60degrees
    • Operating Speed(7.4V):0.13sec/60degrees
    • Operating Speed(8.4V):0.11sec/60degrees
    • Stall torque(7.4V):20.0kg.cm(277.80oz/in)
    • Maximum working torque(7.4V):13.0kg.cm(180.57oz/in)
    • Rated working torque(5.0V):5.70kg.cm(79.17oz/in)
    • Rated working torque(6.0V):7.80kg.cm(108.34oz/in)
    • Rated working torque(7.4V):8.80kg.cm(122.23oz/in)
    • Rated working torque(8.4V):10.8kg.cm(150.01oz/in)

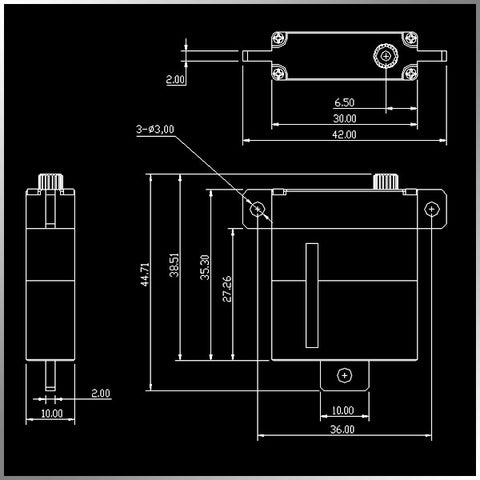

    • Dimensions(L*W*H):30*10*35.5mm/1.17X0.39X1.38in
    • Weight:28.2g(0.99oz)
    • Connector Wire Length:JR185mm(7.22in)
