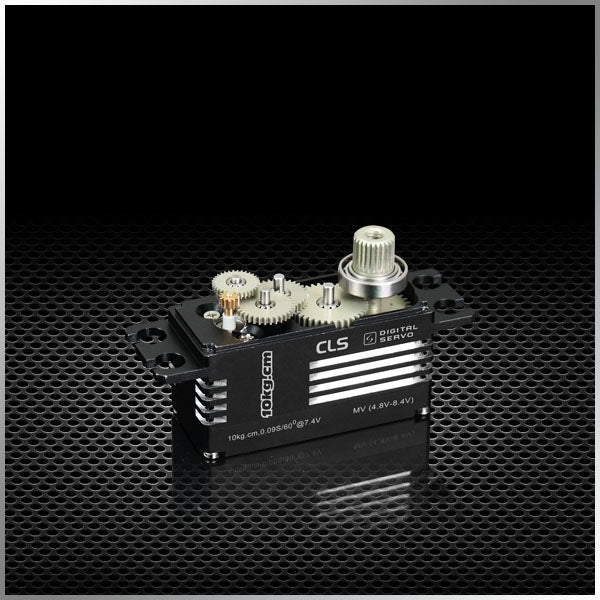

CLS1009ML--31g 10kg.cm,digital,metal gears mini servo

(CLS1009ML) 0 In Stock

SPECIAL ORDER

SUBJECT TO AVIALABILTY

Item：CLS1009ML

Gear：Full metal

Spline：Standard 25T

Motor：Coreless motor

Bearing：2BB

Dead band：2μs default

Waterproof：No

Operating Voltage：DC5.0~8.4V

Rated working voltage：DC 7.4V

Working frequency：1520μs/330hz

Working angle：±63°@800us-2200us

Working temperature：-10℃~+50℃

Storage temperature：-20℃~+60℃

• -- High performance, digital Multivoltage mini servo
• -- Patent gear chain design,more stable and durable
• -- High-precision metal gears with hard anodizing
• -- Full CNC aluminium hulls and structure
• -- High quality coreless motor
• -- Dual ball bearings

• Operating Speed (5.0V): 0.13sec/60 degrees
• Operating Speed (6.0V): 0.11sec/60 degrees
• Operating Speed (7.4V): 0.09sec/60 degrees
• Operating Speed (8.4V): 0.08sec/60 degrees
• Stall Torque (5.0V): 6.8kg.cm (94.45oz/in)
• Stall Torque (6.0V): 8.5kg.cm (118.07oz/in)
• Stall Torque (7.4V): 10kg.cm (138.9oz/in)
• Stall Torque (8.4V): 11kg.cm (152.79oz/in)

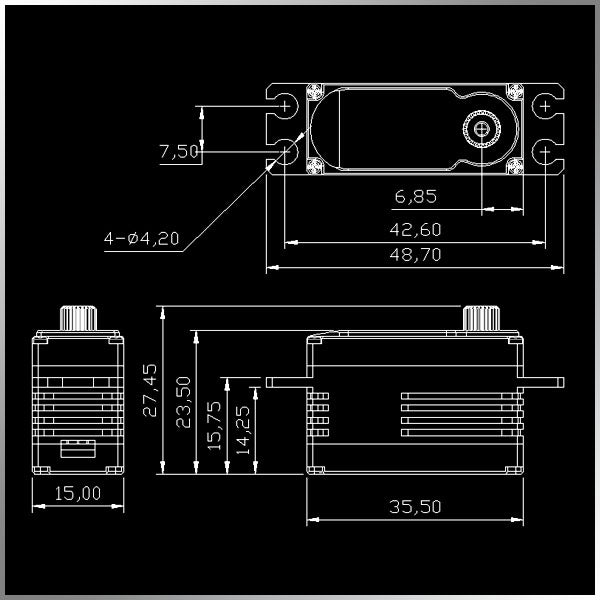

• Dimensions: 35.5*15*23.6mm /1.38*0.58*0.92in
• Weight: 31g(1.09oz)
• Connector Wire Length: JR320 mm (12.48in)
