- Application / Suitable
- Specifications
- Protection Mechanism
- Power Supply
- Control Specification
- Mechanical Specifications
- Physical Specifications
| Priority for 3D Airplane, Large Jet & 1/5、1/8th Buggy, Truggy, Crawler, Monster & Helicopter. (EP / Gas / Nitro) |
| Torque At 6.0V | 31.3 kg-cm / 434.8 oz-in |
| Torque At 7.4V | 37.8 kg-cm / 525.1 oz-in |
| Torque At 8.4V | 43.2 kg-cm / 600.1 oz-in |
| Speed At 6.0V | 0.10 sec / 60° |
| Speed At 7.4V | 0.08 sec / 60° |
| Speed At 8.4V | 0.07 sec / 60° |
| Soft Start Protection | Soft start back to neutral position. |
| Over Voltage Protection | Over 9.0V drive the protection mode, and 8.4V return to normal mode. |
| Low Voltage Protection | Lower than 4.0V, drive the protection mode, and 4.5V return to normal mode. |
| Locked Rotor Protection | Stall in 5 sec, output torque goes down. |
| Temperature Protection | Overheat 85 degrees C (185 degrees F), drive the protection mode and down 75 degrees C (167 degrees F) return to normal mode. |
| Lose Control Protection | When losing the transmitter signal, that servo will immediately be back to the neutral position and locked. |
| Operating Voltage Range | 4.5V ~ 8.5V ( 4 ~ 6 Cell Ni-MH or 2S Li-Poly / 2S Li-Fe) |
| Control System | Digital Controller / AD 12-Bits Resolution ( 4096 Steps ) Frequency：Up to 333Hz / Neutral：1500us or 1520us |
| Dead Band Width | 0.001ms ( Default：1us) |
| Ball Bearing | Dual |
| Gear | All Steel Alloy Metal Gears |
| Motor | High-Premium Brushless Motor |
| Horn / Gear Spline | 25 Teeth ( Same as F-Type ) |
| Dimension (mm) | 40.5 x 20 x 39 mm / 1.59 x 0.79 x 1.54 in |
| Weight (gram) | 76.5 ± 1 grams / 2.70 oz |

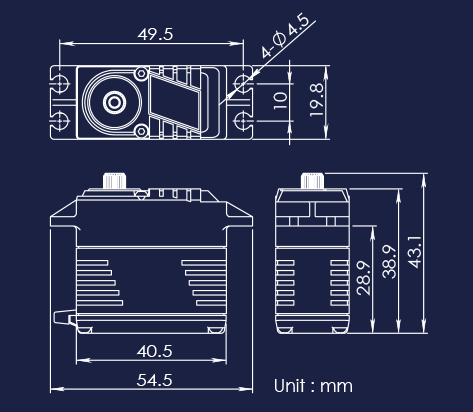

| Product Picture / Dimension Sketch | (1).png)
|
