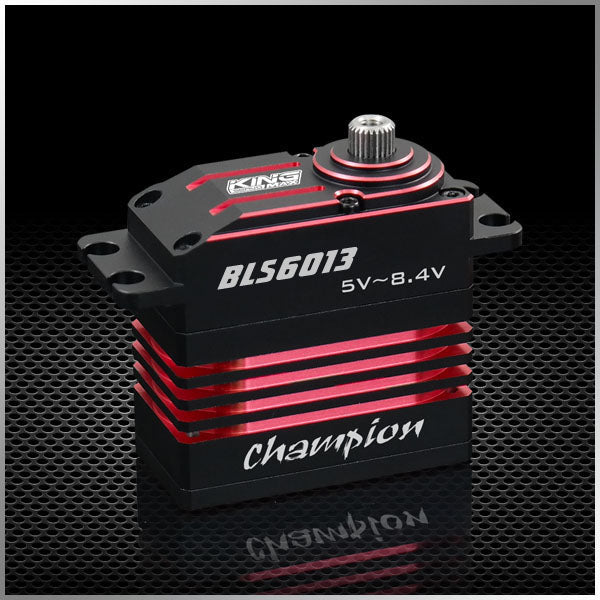

BLS6013--85g 60kg.cm,digital,steel gear standard servos

  • Sale
  • Regular price $118.00


SPECIAL ORDER

SUBJECT TO AVIALABILTY

Item:BLS6013

Gear:Steel gear

Spline:25T

Motor:Brushless motor

Bearing:2BB

Dead band:2μs default

Waterproof:Yes

Operating Voltage:DC5.0~8.4V

Working frequence:1520μs/330hz

-- High performance, digital standard servo

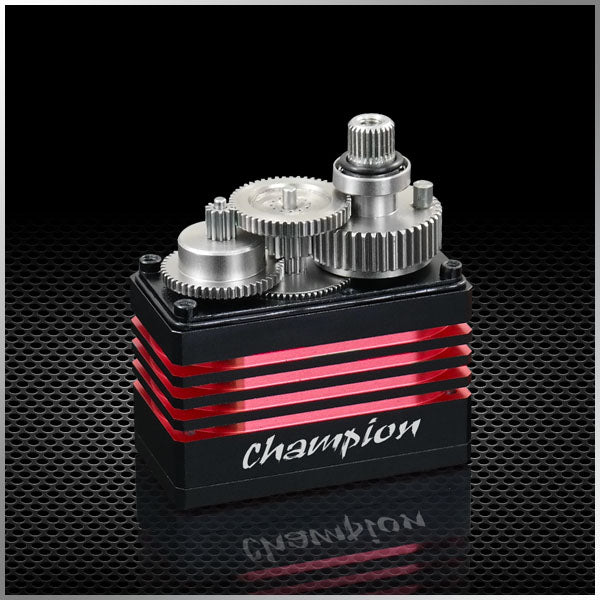

-- High-precision steel gears

-- Full CNC aluminium hulls and structure

-- High quality brushless motor

-- Dual ball bearings

-- Waterproof

Operating Speed (5.0V): 0.20sec/60 degrees

Operating Speed (6.0V): 0.17sec/60 degrees

Operating Speed (7.4V): 0.13sec/60 degrees

Operating Speed (8.4V): 0.12sec/60 degrees

Stall Torque (5.0V): 41.0kg.cm (569.49oz/in)

Stall Torque (6.0V): 51.0kg.cm (708.39oz/in)

Stall Torque (7.4V): 60.0kg.cm (833.40oz/in)

Stall Torque (8.4V): 67.0kg.cm (930.63oz/in)

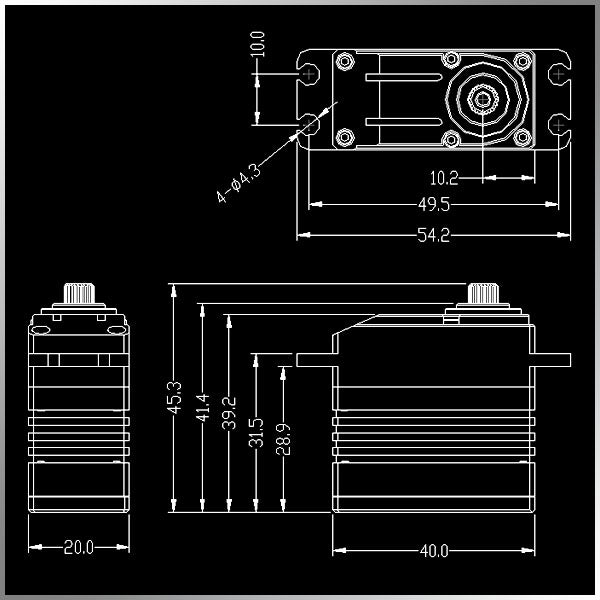

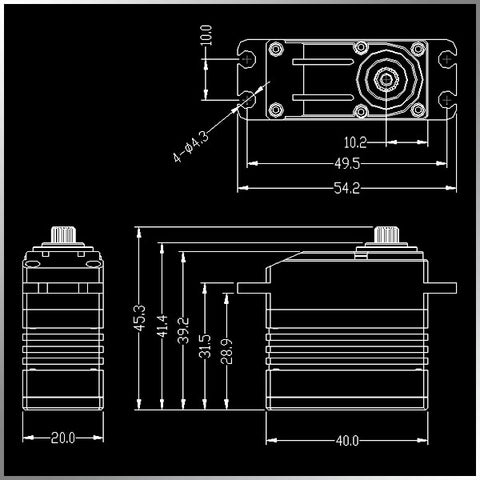

Dimensions: 40X20X39.1mm /1.57X0.79X1.52 in

Weight: 85g (2.99oz)

Connector Wire Length: JR310 mm (12.09in)
