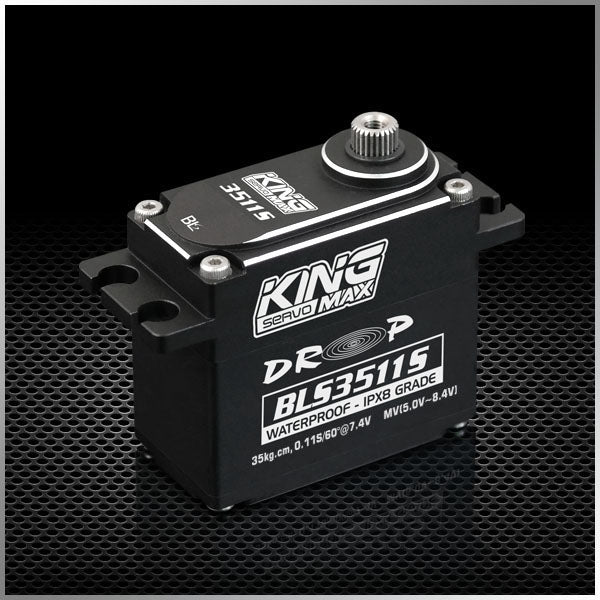

BLS3511S--83g 35kg,digital,steel gears waterproof servo,

  • Sale
  • Regular price $100.00


ON ORDER



Item:BLS3511S

Gear:Steel gear

Spline:25T

Motor:Brushless motor

Bearing:2BB

Dead band:2μs default

Waterproof:Yes

Operating Voltage:DC5.0~8.4V

Working frequence:1520μs/330hz

-- High performance, digital multivoltage standard servo

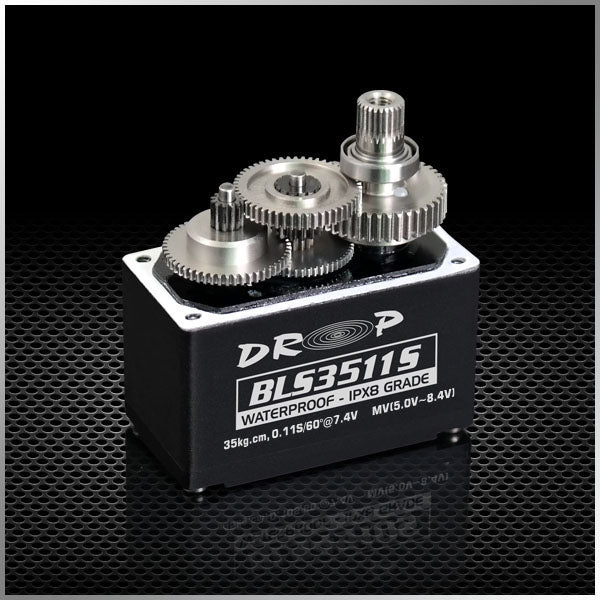

-- High-precision steel gears

-- Full CNC aluminium hulls and structure

-- High quality brushless motor

-- Dual ball bearings

-- Super long working life

-- Waterproof IPX8 grade

Operating Speed (5.0V): 0.17sec/60 degrees

Operating Speed (6.0V): 0.14sec/60 degrees

Operating Speed (7.4V): 0.11sec/60 degrees

Operating Speed (8.4V): 0.10sec/60 degrees

Stall Torque (5.0V): 23.0kg.cm (319.47oz/in)

Stall Torque (6.0V): 28.0kg.cm (388.92oz/in)

Stall Torque (7.4V): 35.0kg.cm (486.15oz/in)

Stall Torque (8.4V): 39.5kg.cm (548.65oz/in)

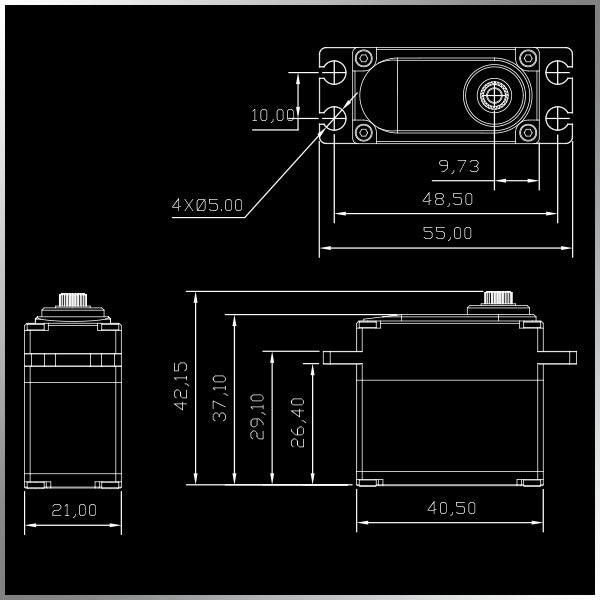

Dimensions: 40.6*21*37.6mm /1.58*0.8*1.4in

Weight: 83.7g(2.9oz)

Connector Wire Length: JR 300 mm (11.17in)
