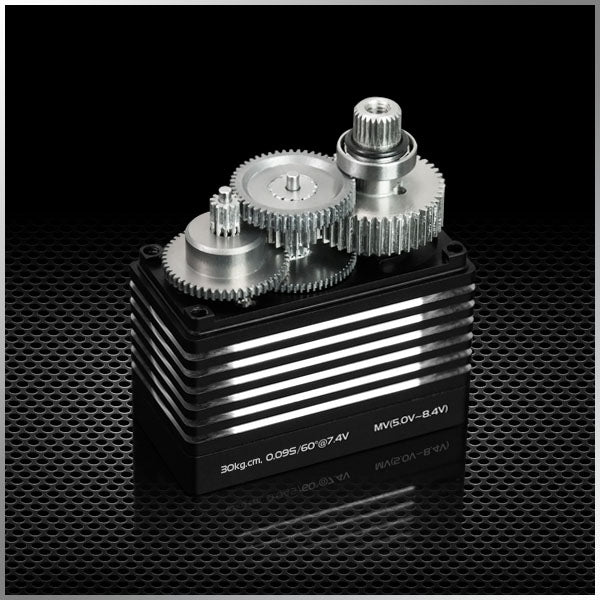

BLS3009S--78g 30kg.cm,digital,metal gears standard servos

SPECIAL ORDER

SUBJECT TO AVIALABILTY

Item：BLS3009S

Gear：Steel gear

Spline：25T

Motor：Brushless motor

Bearing：2BB

Dead band：2μs default

Waterproof：Yes

Operating Voltage：DC5.0~8.4V

Working frequence：1520μs/330hz

-High performance, standard,Multivoltage digital servo

-High-precision steel gear

-Long-life potentiometer

-Full CNC aluminium case

-High quality brushless motor

-Dual ball bearing

-Waterproof

-Suit for 28-50CC gas engine, 1/5 car

Operating Speed (5.0V): 0.13sec/60 degrees

Operating Speed (6.0V): 0.11sec/60 degrees

Operating Speed (7.4V): 0.09sec/60 degrees

Operating Speed (8.4V): 0.08sec/60 degrees

Stall Torque (5.0V): 24.7kg.cm (343.08oz/in)

Stall Torque (6.0V): 26.8kg.cm (372.25oz/in)

Stall Torque (7.4V): 30kg.cm (416.7oz/in)

Stall Torque (8.4V): 34kg.cm (472.26oz/in)

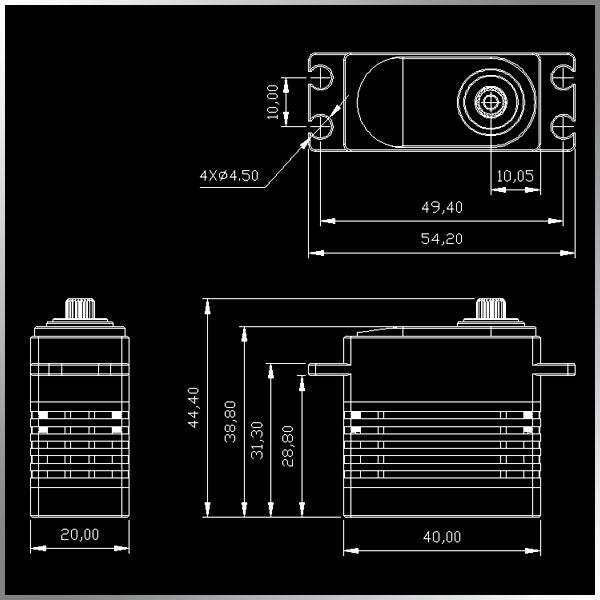

Dimensions: 40X20X40.9mm /1.56X0.78X1.6in

Weight:78g (2.75oz)

Connector Wire Length: 300mm (11.8in)
