BLS1307M--49g 13kg.cm,digital,brushless steel gear mini servos

  • Sale
  • Regular price $95.00


ON ORDER



Item:BLS1307M

Gear:Steel gear

Spline:25T

Motor:Brushless motor

Bearing:2BB

Dead band:2μs default

Waterproof:No

Operating Voltage:DC5.0~8.4V

Working frequence:1520μs/330hz

-- High performance digital mini servo

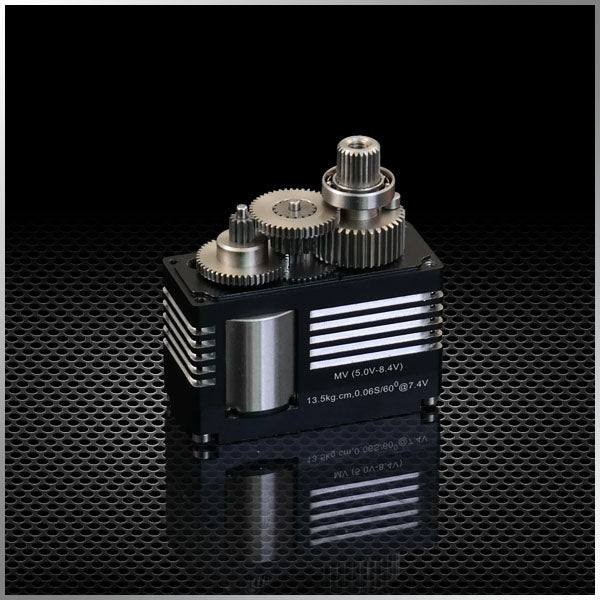

-- High-precision steel gear

-- High quality brushless motor

-- Full CNC aluminium hulls and structure

-- Dual ball bearings

-- Super long life

-- Suitable for 500 class helicopters, 70E fixed wing aircraft, and Turbojets.etc

Operating Speed (5.0V): 0.10sec/60 degrees

Operating Speed (6.0V): 0.07sec/60 degrees

Operating Speed (7.4V): 0.06sec/60 degrees

Operating Speed (8.4V): 0.05sec/60 degrees

Stall Torque (5.0V): 10.2kg.cm (141.67oz/in)

Stall Torque (6.0V): 11.3kg.cm (156.95oz/in)

Stall Torque (7.4V): 13.5kg.cm (187.51oz/in)

Stall Torque (8.4V): 15.0kg.cm (208.35oz/in)

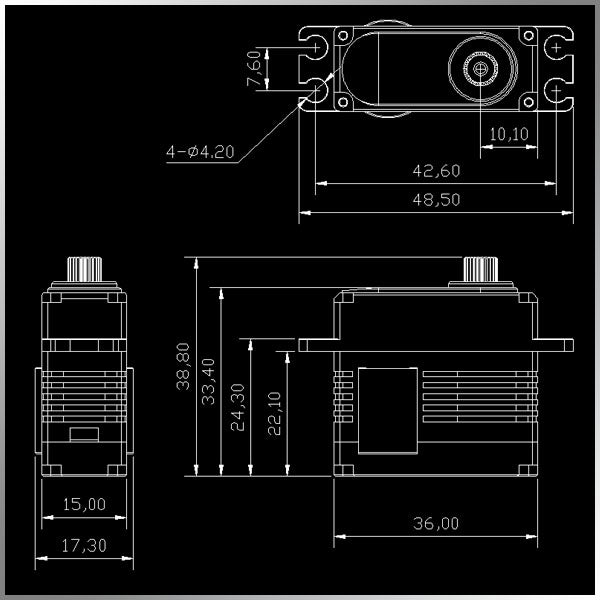

Dimensions: 36*15*33.4mm /1.4*0.58*1.30in

Weight: 49g(1.72oz)

Connector Wire Length: JR225 mm (8.77in)
