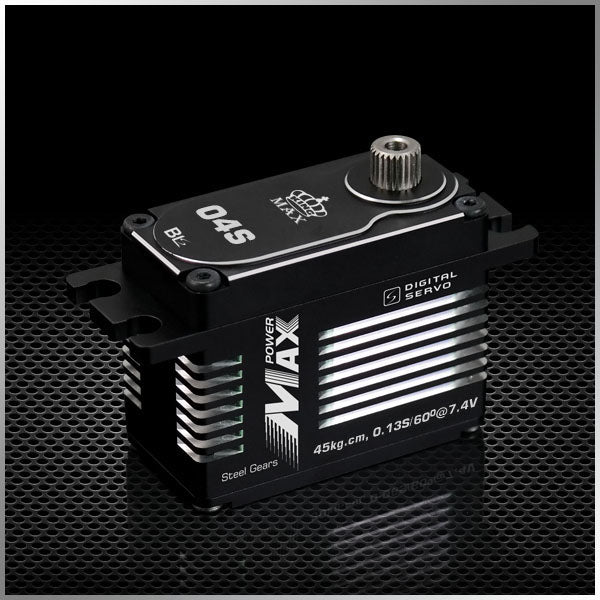

BLS04S--75g 45kg.cm,digital,steel gears standard servo,

SPECIAL ORDER

SUBJECT TO AVIALABILTY

Item：BLS04S

Gear：Steel gear

Spline：25T

Motor：Brushless motor

Bearing：2BB

Dead band：2μs default

Waterproof：Yes

Operating Voltage：DC5.0~8.4V

Working frequence：1520μs/330hz

-- High performance, digital standard servo

-- Patent gear chain design,more stable and durable

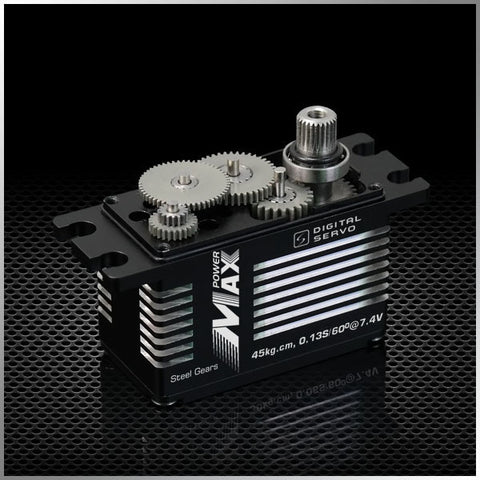

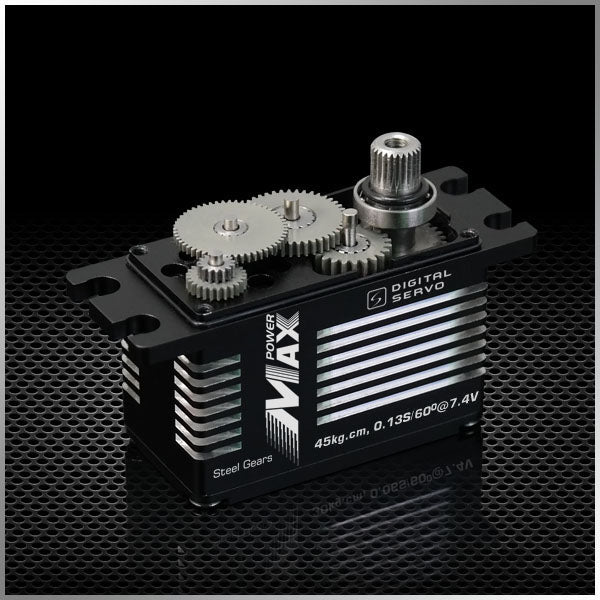

-- High-precision steel gears

-- Full CNC aluminium hulls and structure

-- High quality brushless motor

-- Dual ball bearings

-- Waterproof

Operating Speed (5.0V): 0.21sec/60 degrees

Operating Speed (6.0V): 0.17sec/60 degrees

Operating Speed (7.4V): 0.13sec/60 degrees

Operating Speed (8.4V): 0.12sec/60 degrees

Stall Torque (5.0V): 30.0kg.cm (416.70oz/in)

Stall Torque (6.0V): 35.0kg.cm (486.15oz/in)

Stall Torque (7.4V): 45.0kg.cm (625.05oz/in)

Stall Torque (8.4V): 50.0kg.cm (694.50oz/in)

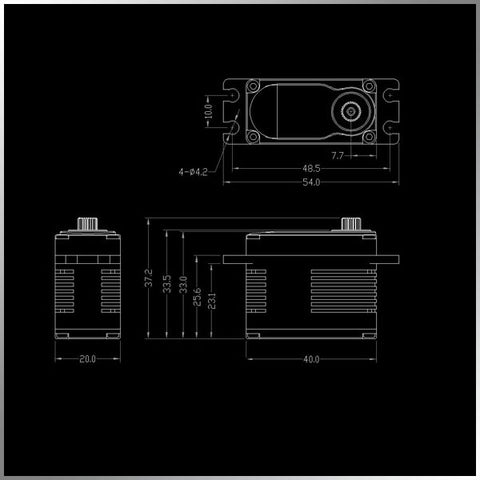

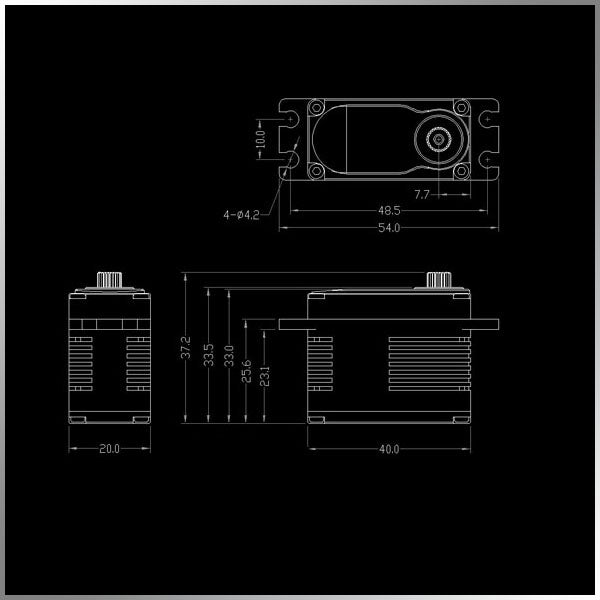

Dimensions: 40*20*33mm /1.56*0.78*1.29in

Weight: 75g(2.64oz)

Connector Wire Length: JR320 mm (12.48in)
