BLS-M91T [New Generation]

  • Sale
  • Regular price $103.99


1 In Stock

1/8th、1/10th、1/12th 2WD, 4WD On-Road & Airplane & Helicopter



Torque At 6.0V 24.6 kg-cm / 341.7 oz-in
Torque At 7.4V 28.3 kg-cm / 393.1 oz-in
Torque At 8.4V 30.1 kg-cm / 418.1 oz-in
Speed At 6.0V 0.11 sec / 60°
Speed At 7.4V 0.09 sec / 60°
Speed At 8.4V 0.08 sec / 60°



Soft Start Protection Soft start to a neutral position.
Over Voltage Protection Over 9.0V drive the protection mode and 8.4V return to normal mode.
Low Voltage Protection Lower than 4.0V, drive the protection mode and 4.5V return to normal mode.
Locked Rotor Protection Stall in 5 sec, output torque goes down.
Temperature Protection Overheat 85 degrees C (185 degrees F), drive the protection mode and down 75 degrees C (167 degrees F) return to normal mode.
Lose Control Protection When losing the transmitter signal, that servo will be back to the neutral position immediately and lock.



Operating Voltage Range  4.5V ~ 8.7V DC ( 2S HV Li-Poly / 2S Li-Fe Compatible )



Control System Higher-order Algorithm 32-bit MCU ( Microcontroller Unit )
Frequency:Up to 333Hz / Neutral:1500us or 1520us
Frame Rate (Signal repeat rate) 3ms ( Maximum )
Dead Bend Width 0.001ms ( Default:1us )
Potentiometer (Variable Resistor) Magnetic Sensor ( Contactless )



Ball Bearing Dual Ball Bearings
Gear All Metal Alloy Gears
Outside Case Full One-Piece Aluminum CNC Casing
Motor High-Premium Brushless Motor
Horn / Gear Spline 25 Teeth



Dimension (mm) 40.8 x 21 x 25.4 mm / 1.60 x 0.83 x 1.0 in
Weight (gram) 49.5 ± 1 grams / 1.74 oz

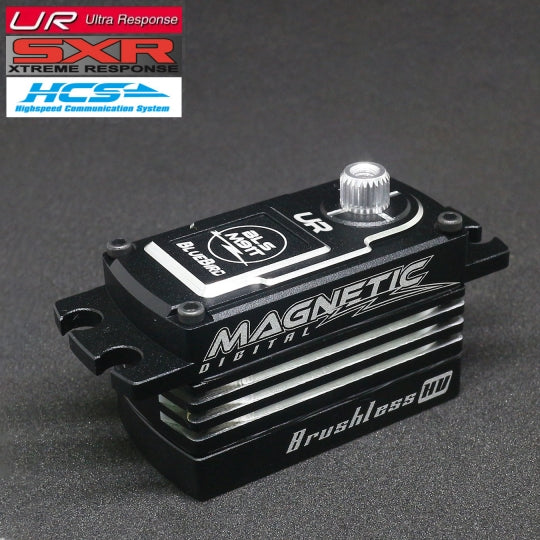

Product Picture / Dimension Sketch
