BLS-M52B V2 [SR/SXR Edition]

  • Sale
  • Regular price $125.99


8 In Stock


8.4V@62.9kg/873.6oz
8.4V@0.09sec
( Including Aluminum Arm * 1 PCS)



Awesome for 3D Airplane, Jet & 1/5、1/8th Monster / Crawler / Off-road Car & Helicopter.



Torque At 6.0V 46.2 kg-cm / 641.7 oz-in
Torque At 7.4V 55.7 kg-cm / 773.6 oz-in
Torque At 8.4V 62.9 kg-cm / 873.6 oz-in
Speed At 6.0V 0.12 sec / 60°
Speed At 7.4V 0.10 sec / 60°
Speed At 8.4V 0.09 sec / 60°



Soft Start Protection Soft start to a neutral position.
Over Voltage Protection Over 9.0V drive the protection mode and 8.4V return to normal mode.
Low Voltage Protection Lower than 4.0V, drive the protection mode and 4.5V return to normal mode.
Locked Rotor Protection Stall in 5 sec, output torque goes down.
Temperature Protection Overheat 85 degrees C (185 degrees F), drive the protection mode and down 75 degrees C (167 degrees F) return to normal mode.
Lose Control Protection When losing the transmitter signal, that servo will be back to the neutral position immediately and lock.



Operating Voltage Range 4.5V ~ 8.5V ( 4 ~ 6 Cell Ni-MH or 2S HV Li-Poly / 2S Li-Fe)



Control System Digital Controller / AD 12-Bits Resolution ( 4096 Steps )
Frequency:Up to 333Hz / Neutral:1500us or 1520us
Dead Band Width 0.001ms ( Default:1us)
Potentiometer (Variable Resistor) Magnetic Sensored 【Non - Contact】



Ball Bearing Dual, Stronger Ball Bearings
Gear All Stainless Steel Helical Gears
Outside Case Full One-Piece Aluminum CNC Casing
Motor High-Efficiency Japanese Brushless Motor
Horn / Gear Spline 25 Teeth ( Same as F-Type )



Dimension (mm) 40.5 x 21 x 38.5 mm / 1.59 x 0.83 x 1.52 in
Weight (gram) 83.0 ± 1 grams / 2.93 oz

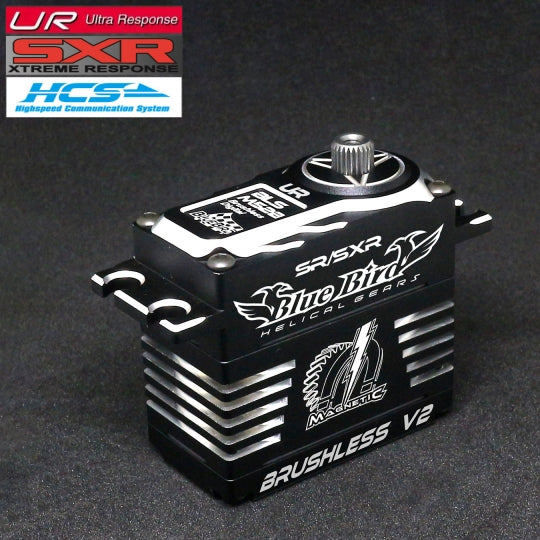

Product Picture / Dimension Sketch
